Disassembly and Reassembly

Evaporator

DISASSEMBLY

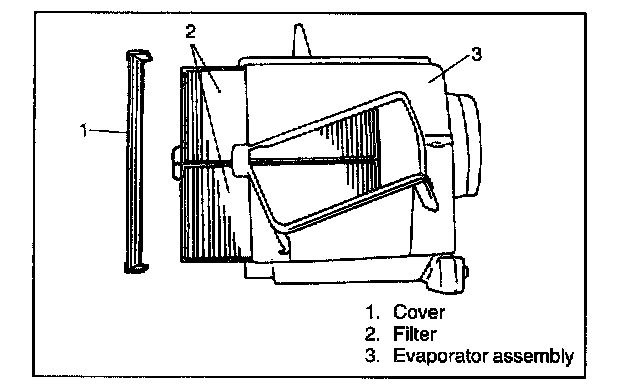

1. Remove filter assembly.

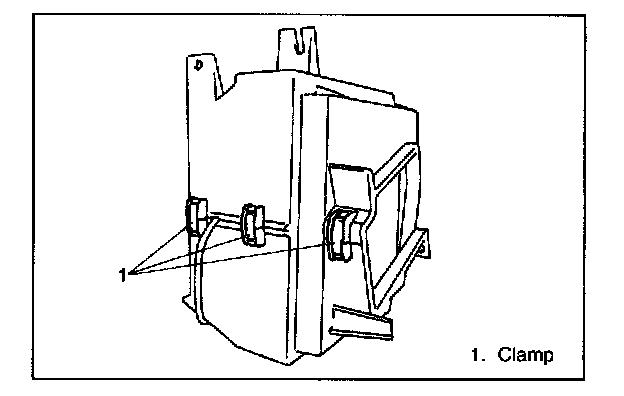

2. Detach clamps to separate evaporator upper and lower cases from each other.

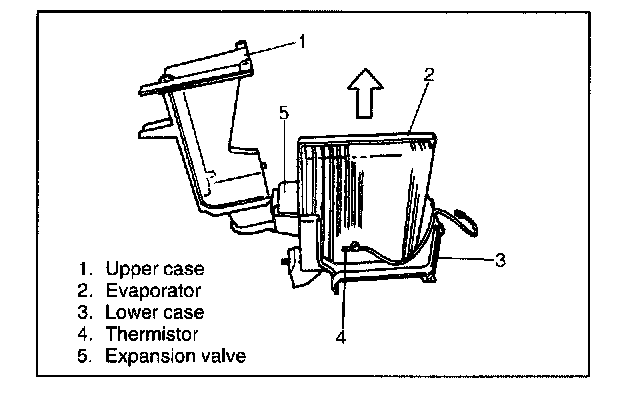

3. Remove upper case and remove evaporator from lower case.
4. Remove following components from evaporator.
- Expansion valve
- Thermistor

ASSEMBLY
1. Reverse removal sequence to install evaporator.
2. Enable air bag system.
3. Evacuate and charge system according to previously described procedures.
