Fluid - A/T: Service and Repair
FLUID CHANGE 1.
Lift up vehicle.
2.
With engine cool, remove drain plug from oil pan and drain A/T fluid.
3.
Install drain plug.
Tightening Torque (a):
23 Nm (2.3 kg-m, 17.0 ft. lbs.) 4.

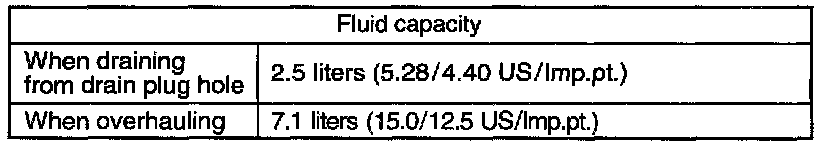

Lower vehicle and fill proper amount of an equivalent of DEXRON-III.
5.

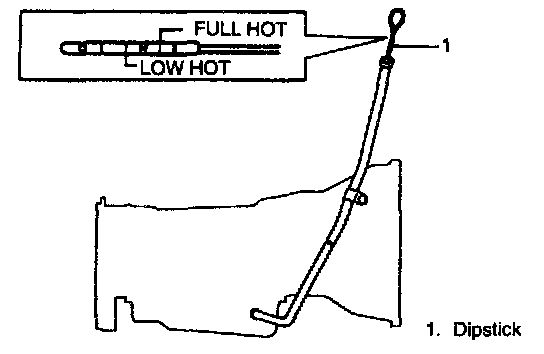

Check fluid level according to procedure described under LEVEL CHECK AT NORMAL OPERATING TEMPERATURE.
