Fuse: Application and ID

The chart shows the circuits protected by each fuse.

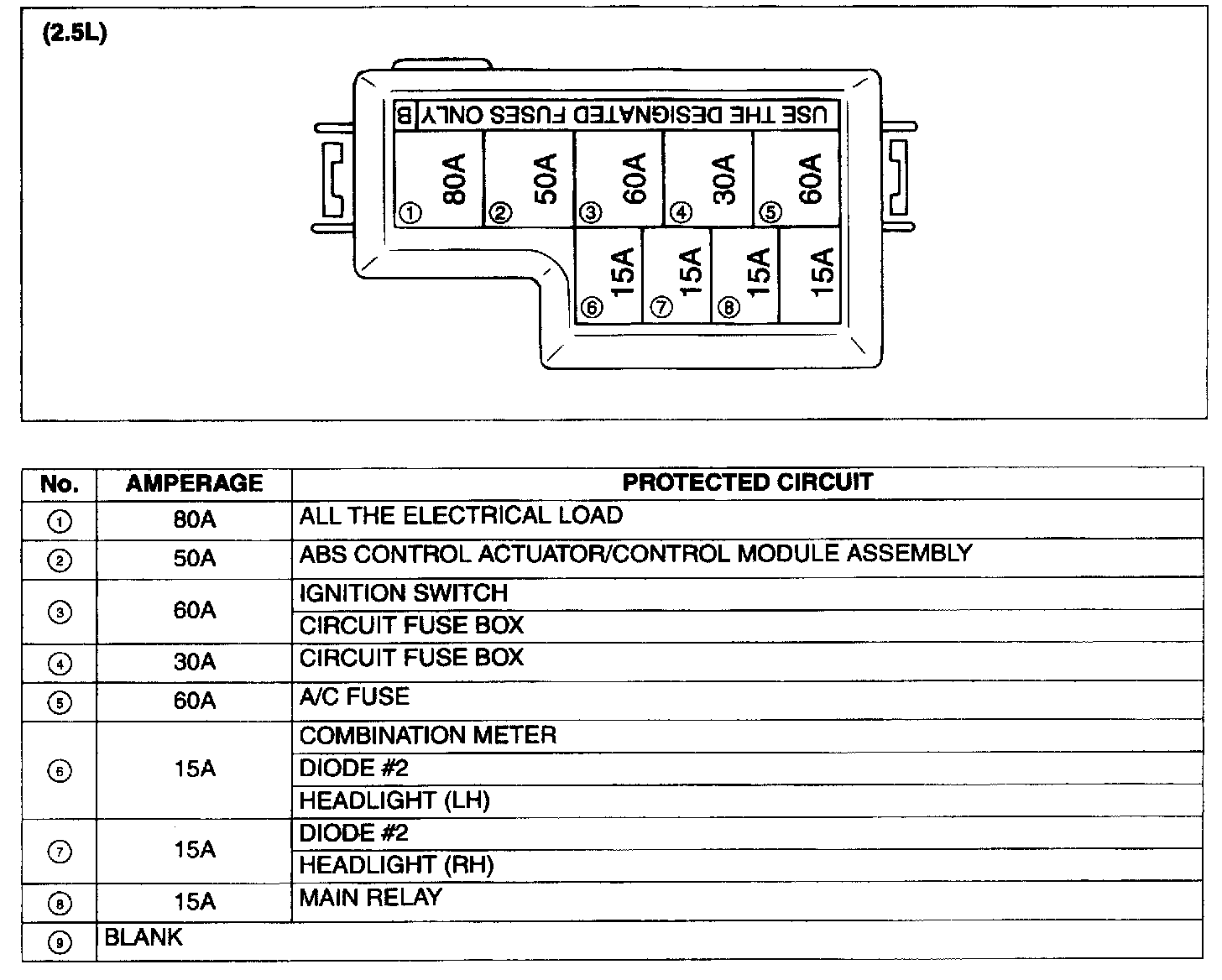

Fuses In Main Fuse Box (No. 1 - 9):

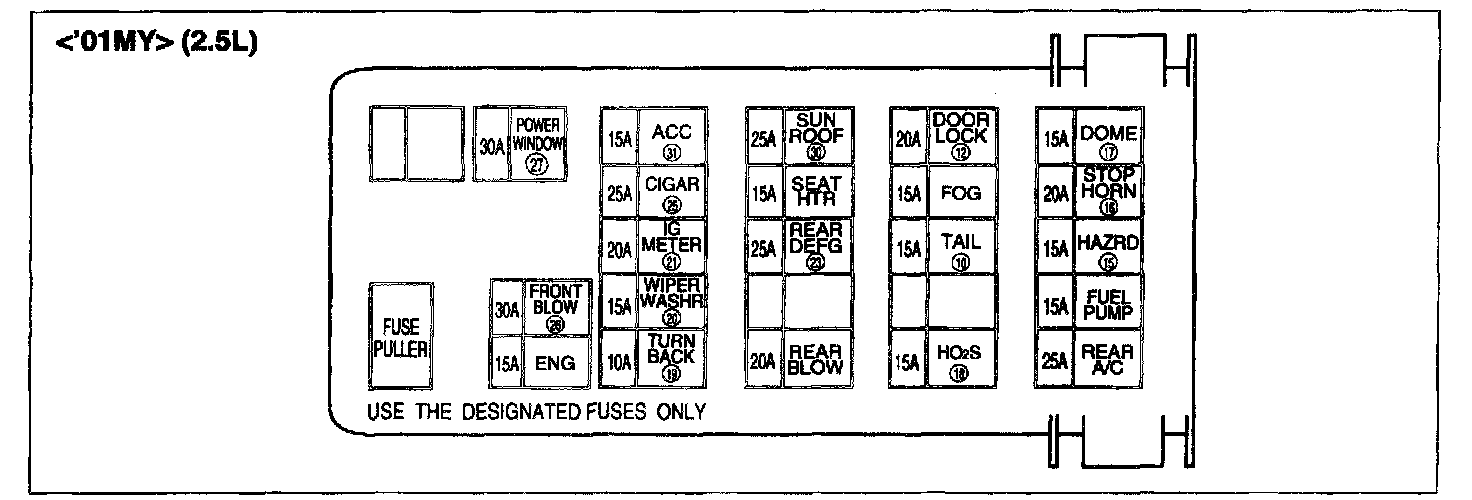

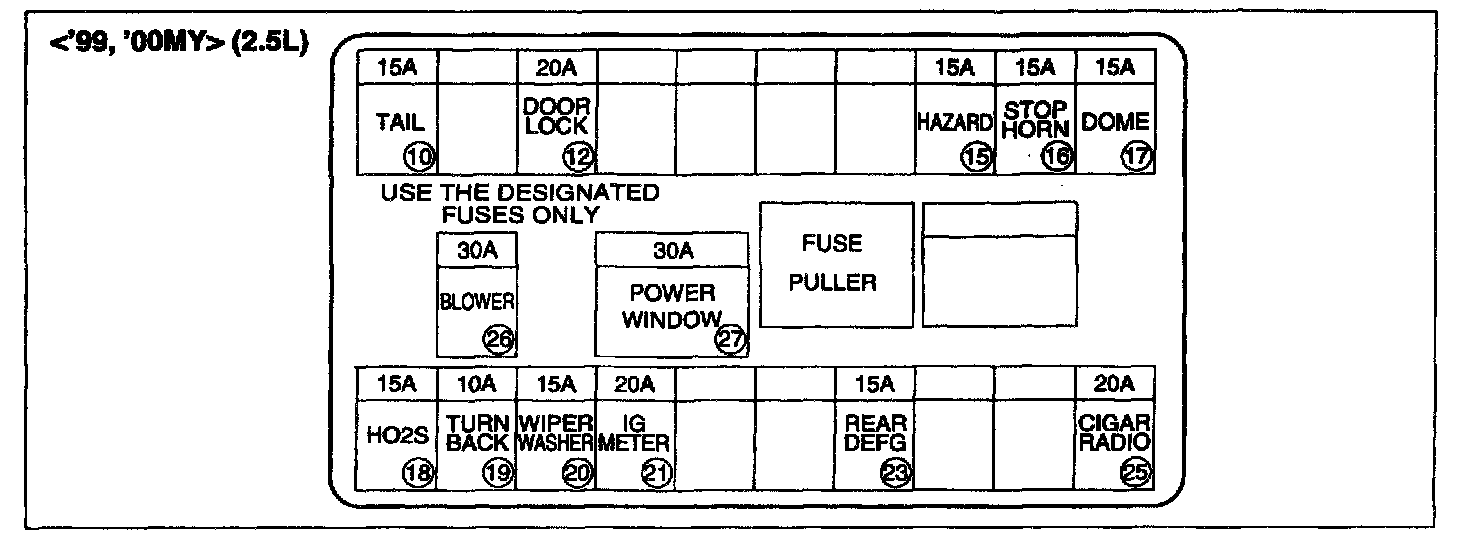

Fuses In Main Fuse Box:

FUSES IN MAIN FUSE BOX

Fuses In Main Fuse Box (No. 10 - 16) Part 1:

(A) '99, '00MY ONLY
(B) '01MY ONLY

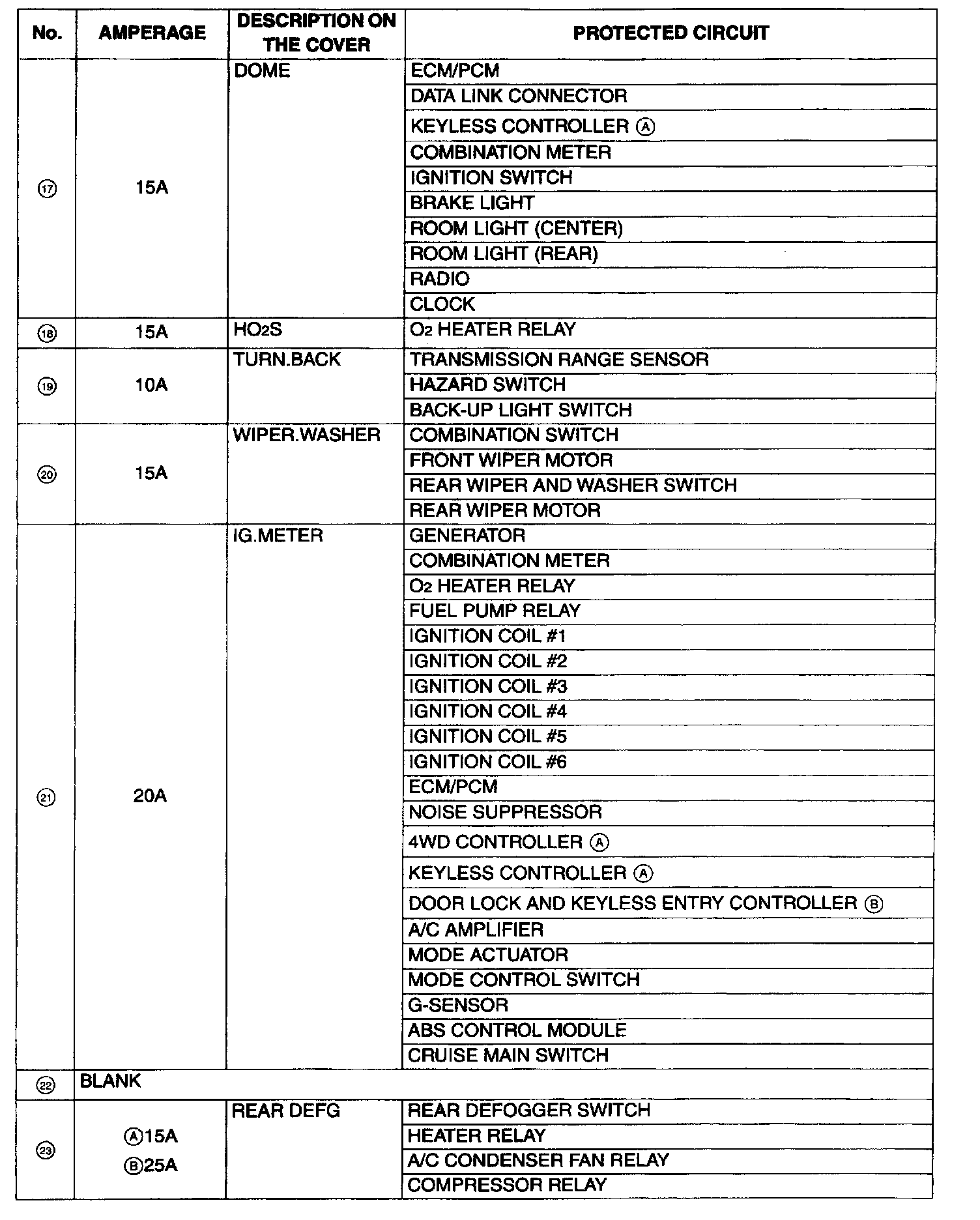

Fuses In Main Fuse Box (No. 17 - 23) Part 2:

(A) '99, '00MY ONLY
(B) '01MY ONLY

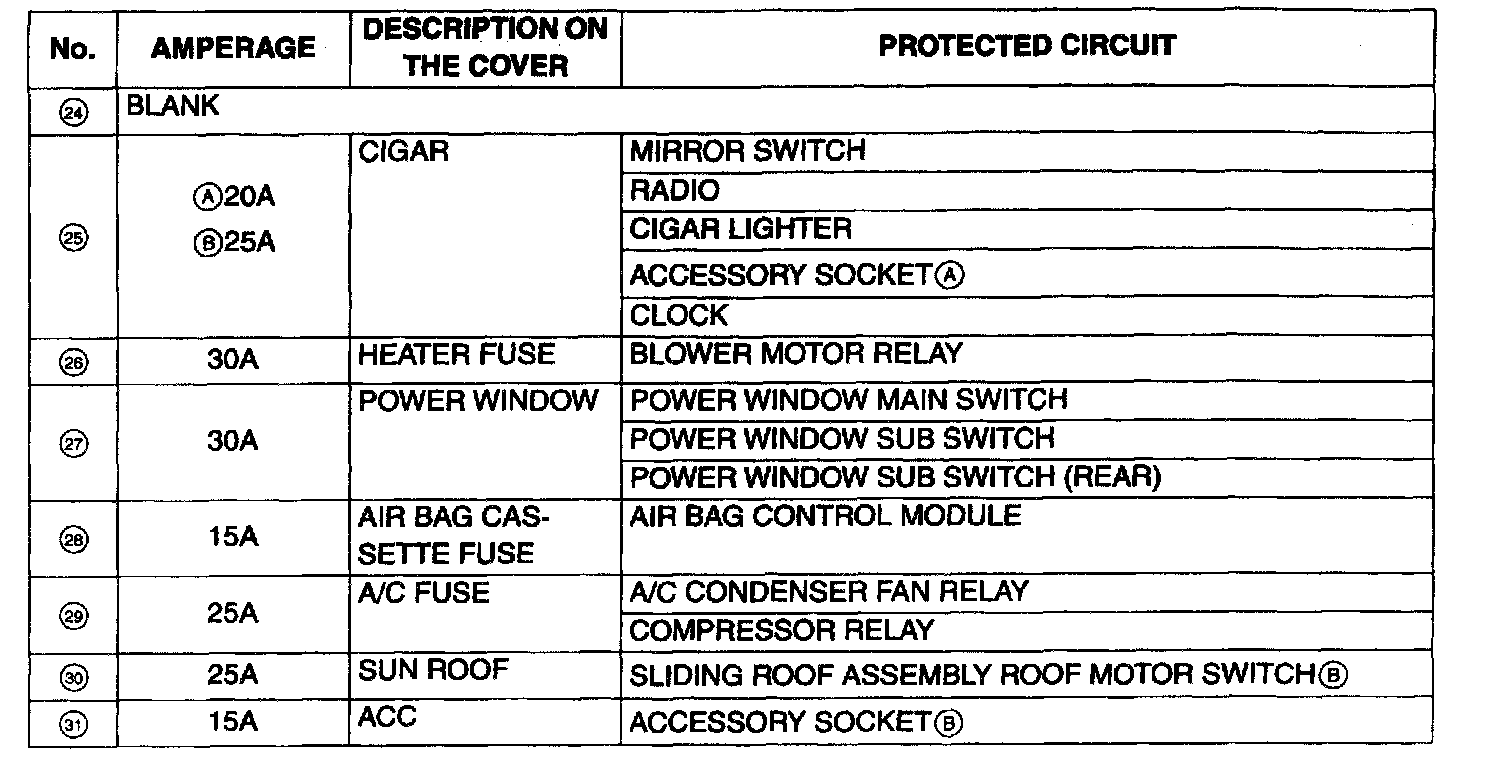

Fuses In Main Fuse Box (No. 24 - 31) Part 3:

(A) '99, '00MY ONLY
(B) '01MY ONLY
