How to Locate Ground Point

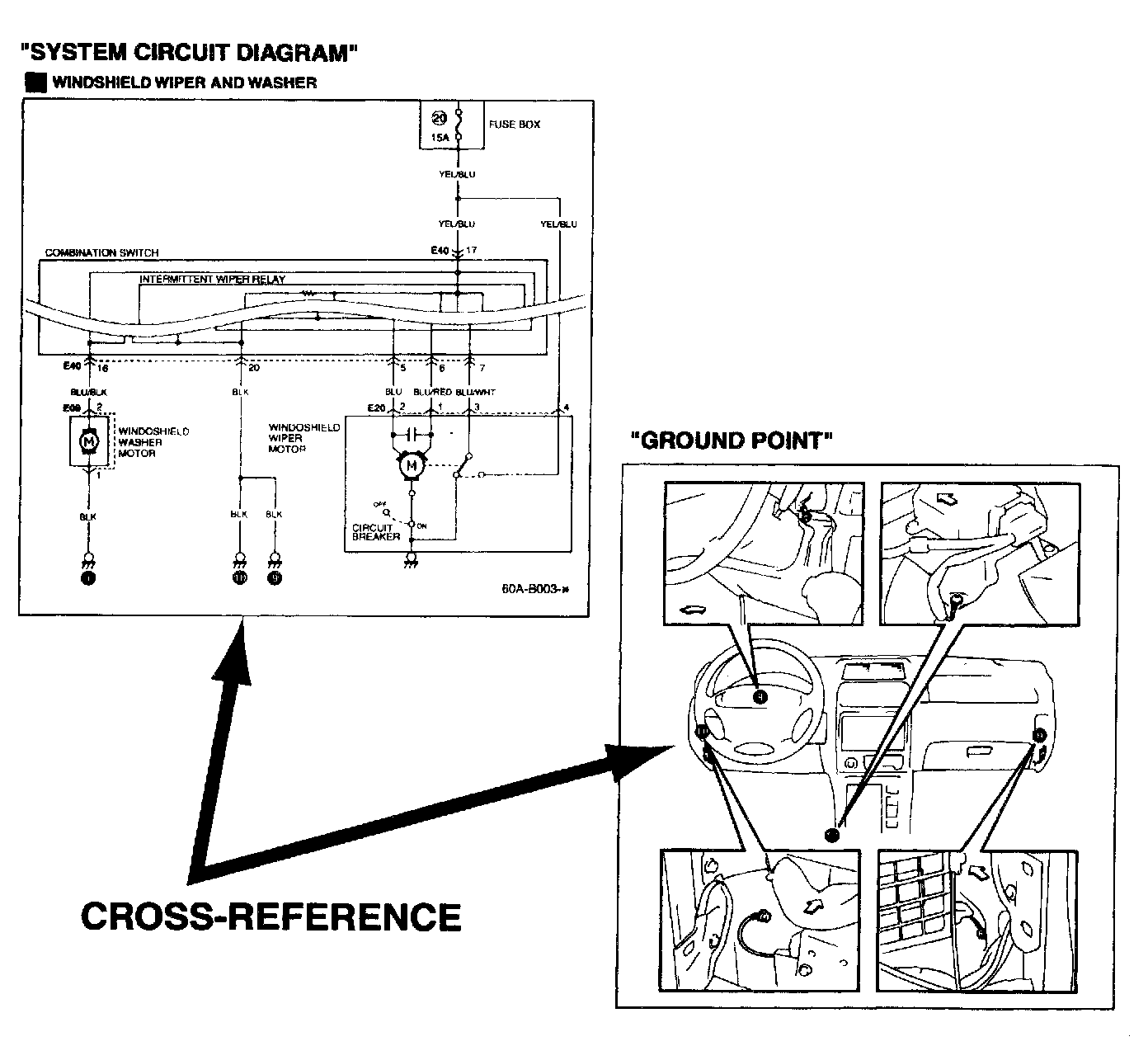

Look in ("GROUND POINT") for the black circle with the same numerical figure as the one described ("SYSTEM CIRCUIT DIAGRAM").
NOTE: If there is an electrical part whose ground point Is not found In ("GROUND POINT"), that part Itself serves as a ground.
