Component Tests and General Diagnostics

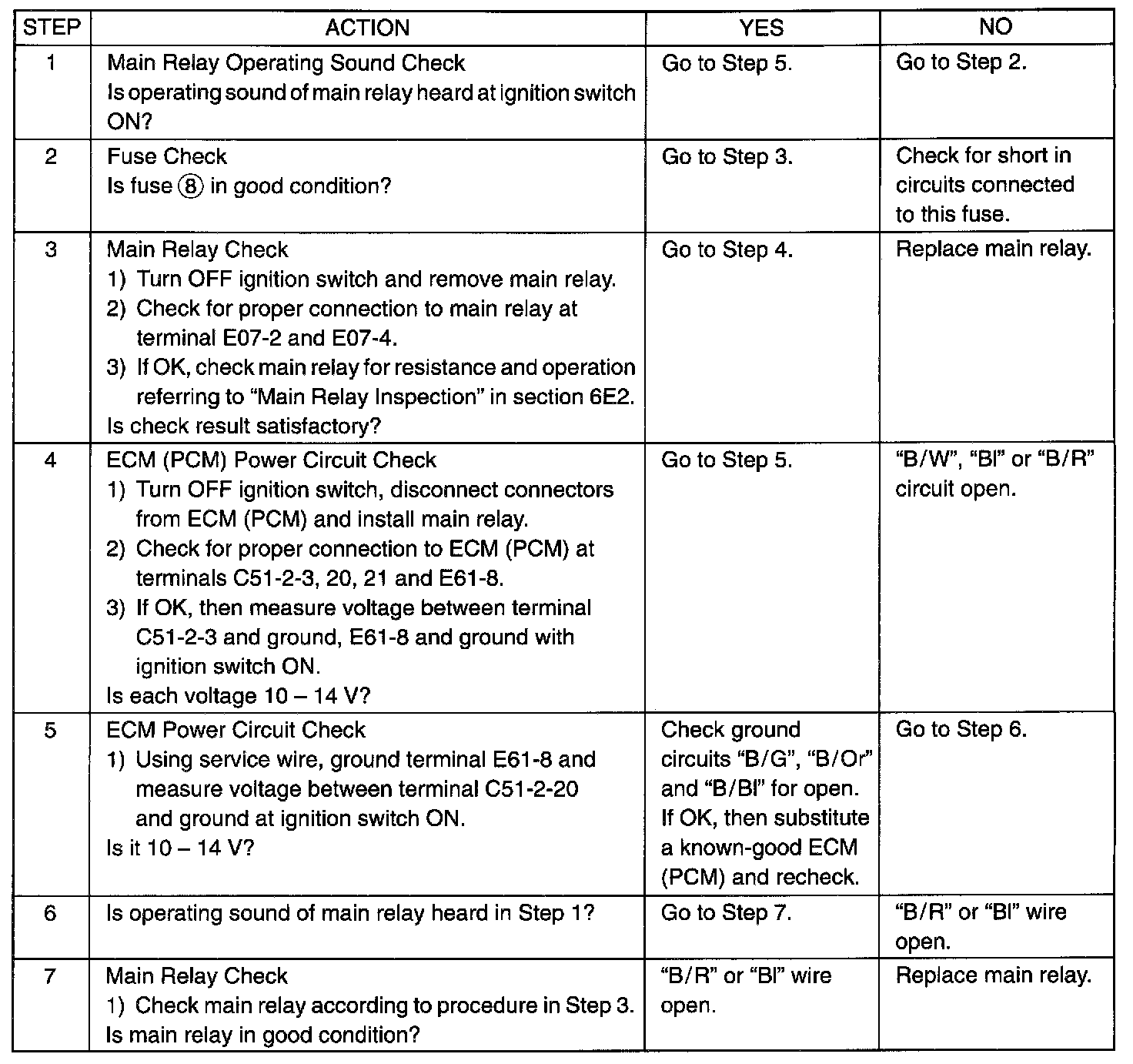

TABLE A-3 ECM (PCM) POWER AND GROUND CIRCUIT CHECK - MIL DOES NOT LIGHT AT IGNITION SWITCH ON AND ENGINE DOES NOT START THOUGH IT IS CRANKED UPWIRING DIAGRAMCIRCUIT DESCRIPTION When the ignition switch is turned
ON, the main relay turns
ON and the main power is supplied to ECM (PCM).
TROUBLESHOOTING
