Component Inspection
INSPECTIONInspect them for electrode wear, carbon deposits and Insulator damage.
If any abnormality is found, adjust air gap, clean with
spark plug cleaner or replace them with specified new plug.
Spark plug type: NGK BKR6E-11 DENSO K20PR-U11

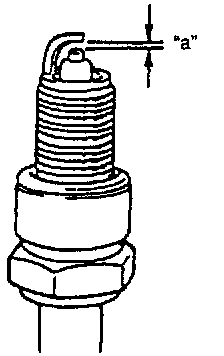

Spark plug air gap "a":
1.0 - 1.1 mm (0.039 - 0.043 in.)
