Component Tests and General Diagnostics
1.

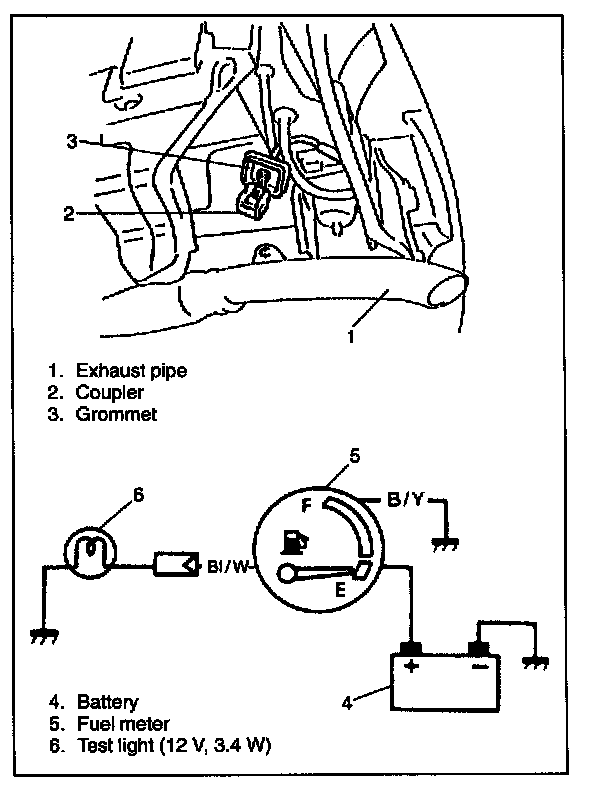

Remove rear bumper facing.
2.
Detach grommet from vehicle.
3.
Disconnect coupler.
4.
Connect BI/W terminal of coupler to a light bulb
(12 V, 3.4W).
5.
Turn ignition switch
ON.
Make sure that bulb is lighted with meter pointer fluctuating several seconds thereafter. If meter is faulty, replace.
