Fluid Line/Hose: Service and Repair

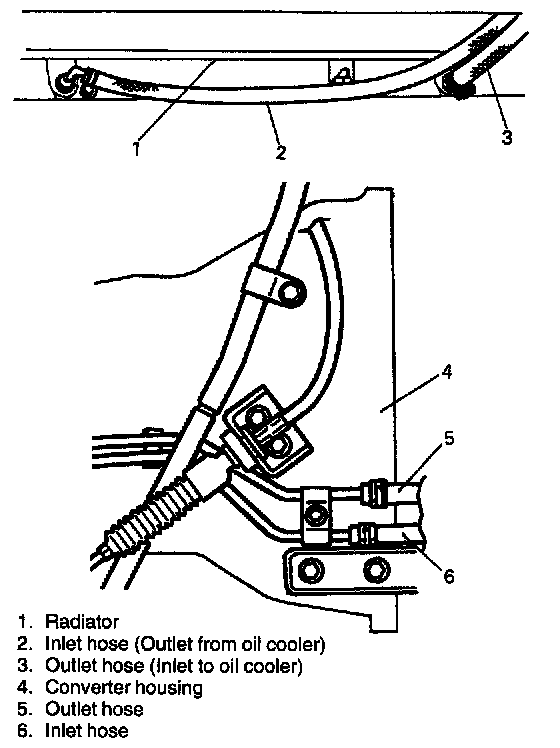

OIL COOLER HOSES





The rubber hoses for the oil cooler should be replaced every 60,000 km (36,000 miles) or every 3 years. When replacing them, be sure to note the following.
^ to replace clamps at the same time
^ to insert hose as far as its limit mark
^ to tighten clamps to specified torque
