Fluid Line/Hose: Service and Repair

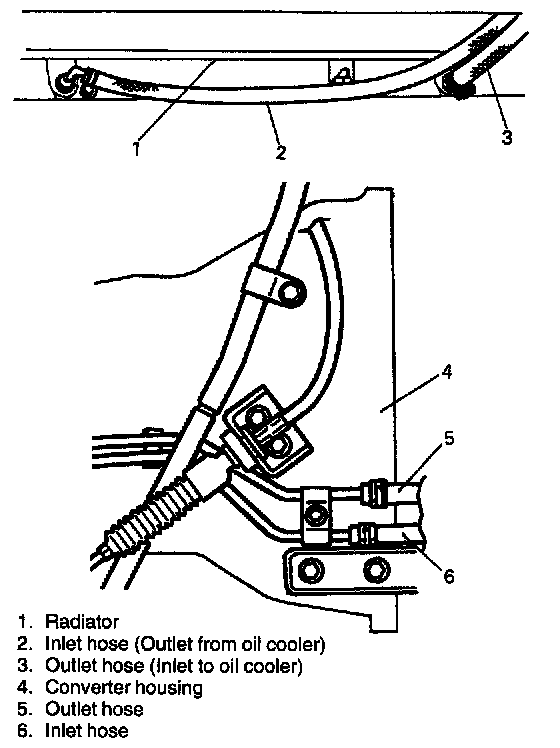

OIL COOLER HOSES The rubber hoses for the oil cooler should be replaced every
60,000 km (36,000 miles) or every
3 years. When replacing them, be sure to note the following.
^
to replace clamps at the same time
^
to insert hose as far as its limit mark
^
to tighten clamps to specified torque
