Overdrive Switch: Testing and Inspection

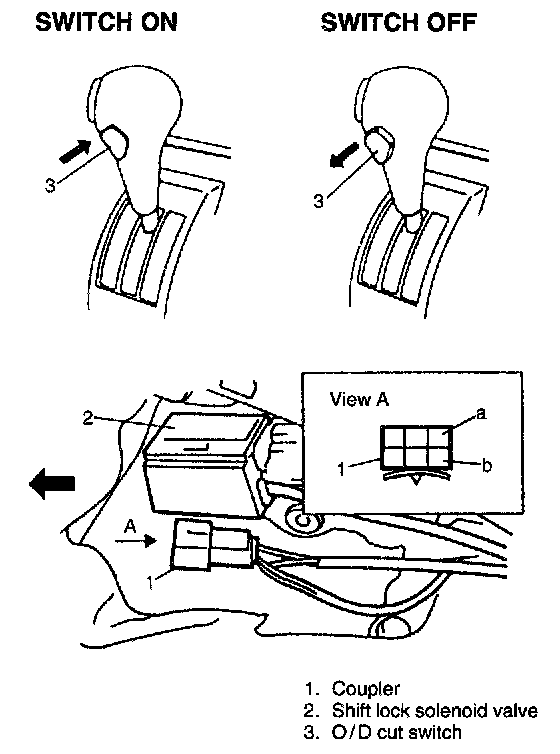

O/D CUT SWITCH INSPECTION Remove front center console box and disconnect O/D cut switch coupler. Check its continuity between "a" and "b" terminals shown in figure.
^
When this switch is ON, there should be continuity.
^
When this switch is OFF, there should be no continuity.
