Automatic Transmission Basic Check

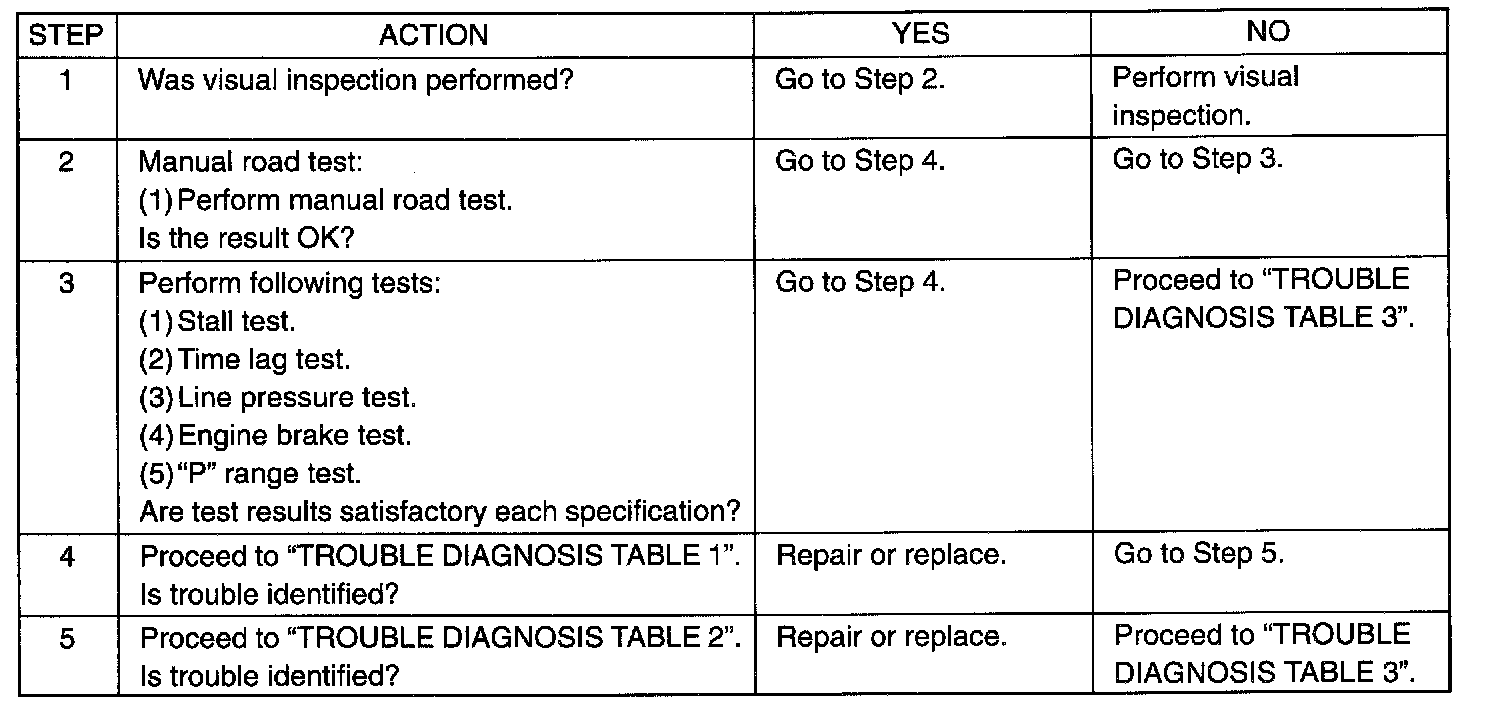

AUTOMATIC TRANSMISSION BASIC CHECK FLOW TABLE





This inspection is important for troubleshooting when PCM has detected no DTC and no abnormality has been noted in visual inspection.
