Table B-4

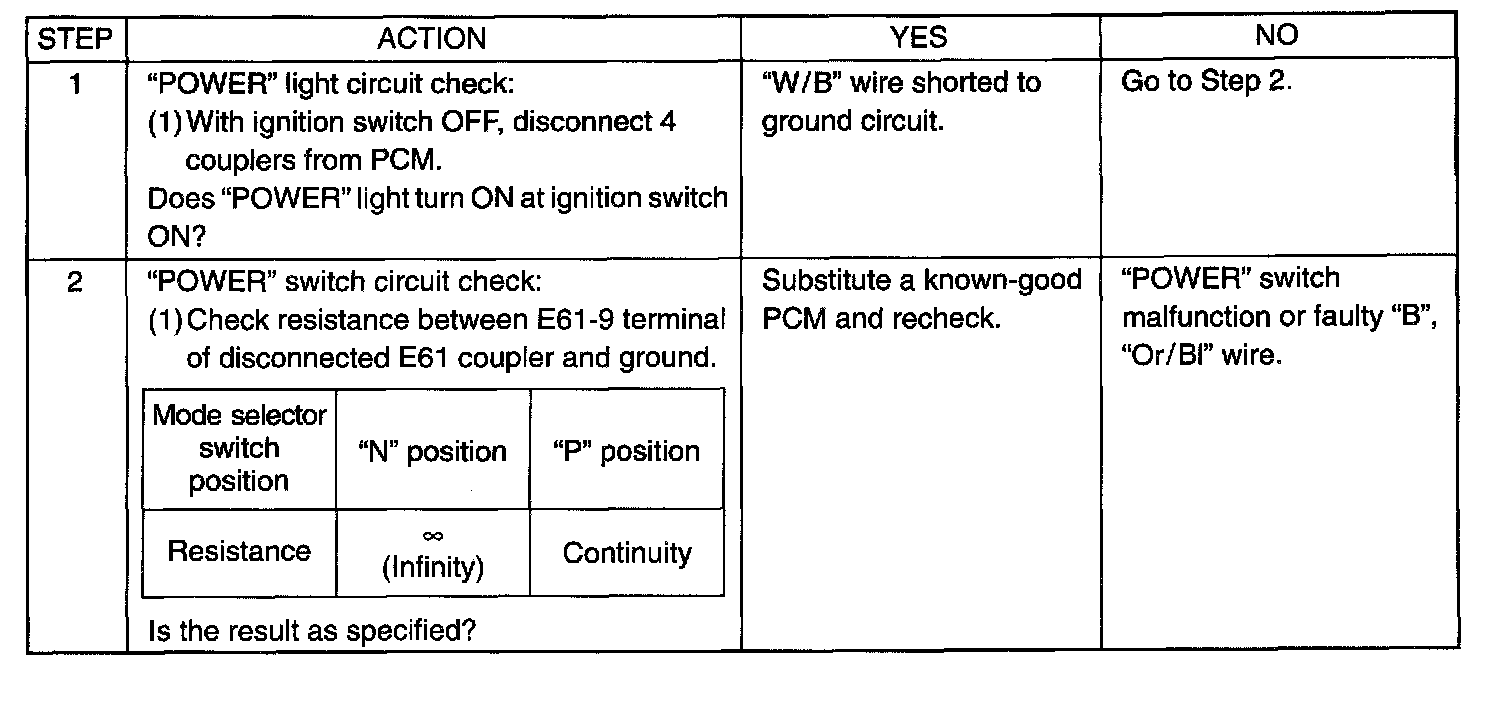

DIAGNOSTIC FLOW TABLE B4 "POWER" LIGHT CIRCUIT CHECK ("POWER" LIGHT COMES ON STEADILY)
WIRING DIAGRAM Refer to TABLE B1.
Table B-1 DTC TROUBLESHOOTING
