Speedometer Drive With Automatic Transaxle

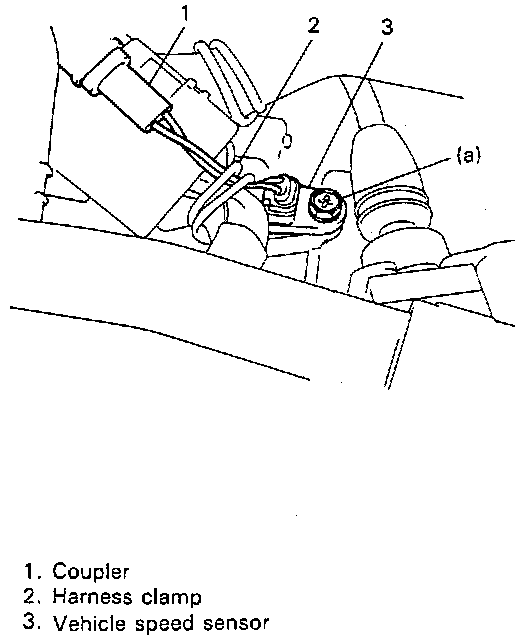

VEHICLE SPEED SENSOR (VSS) 1.
Undo wiring harness clamp.
2.
Disconnect
Vehicle Speed Sensor (VSS) coupler.
3.
Remove
VSS bolt.
4.
Pull out
VSS by gripping sensor body.
5.
For installing, reverse removal procedure.
NOTE: Check to be sure that O ring is in good condition.
Tightening Torque
(a): 7 - 9 Nm (0.7 - 0.9 kg-m, 5.5 - 6.5 ft. lbs.)
