Power Door Lock Actuator: Testing and Inspection

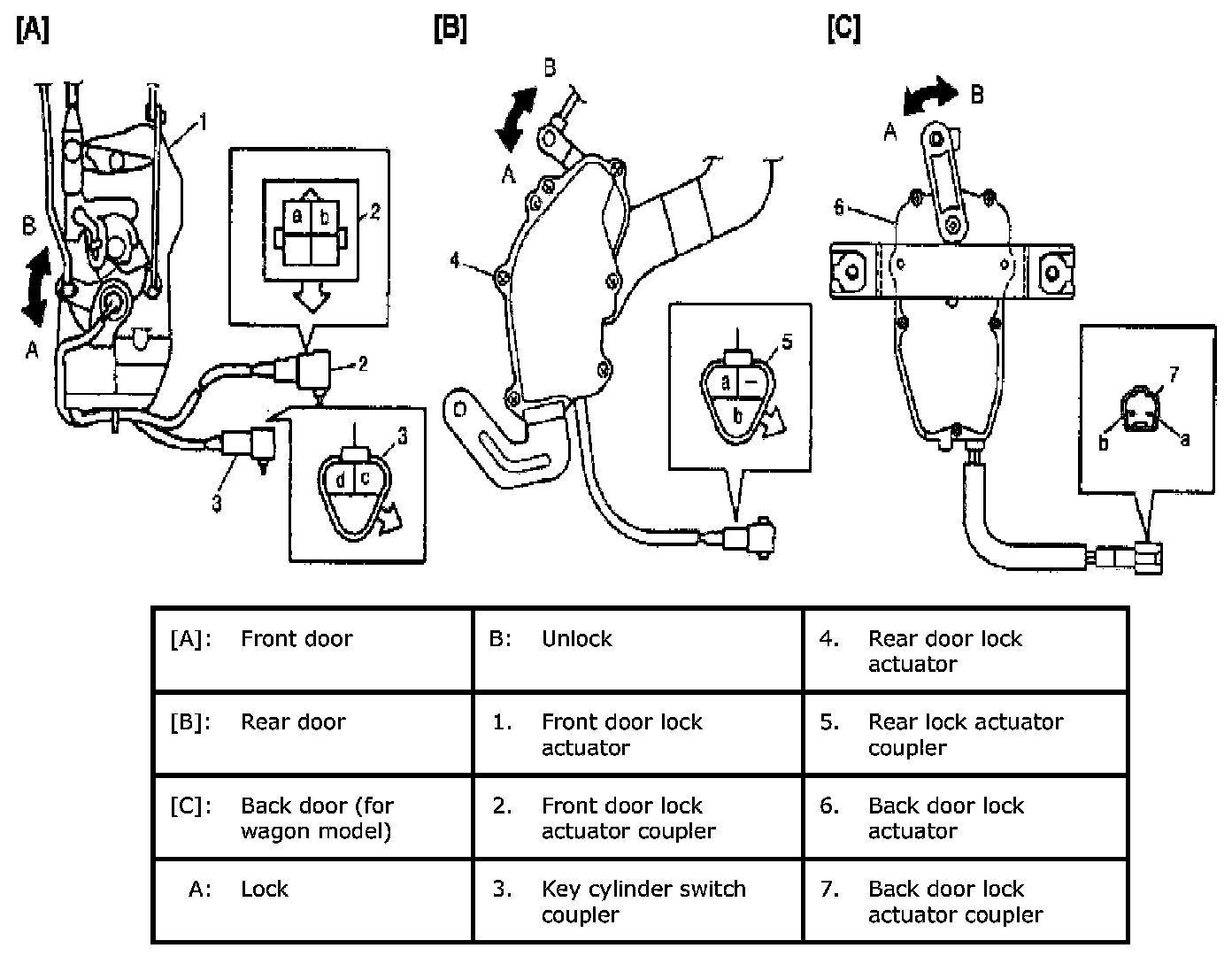

Power Door Lock Actuator Inspection 1.
Disconnect
power door lock actuator coupler.
2.
Connect (+) cord and (-) cord of 12 V battery to coupler terminal "a" and "b".
3.
Actuator is proved to be operating properly if (-) cord connection to terminal "a" results in Lock and its connection to terminal "b" results in Unlock.
