Idle Speed/Throttle Actuator - Electronic: Service and Repair
IDLE AIR CONTROL VALVE (IAC VALVE)REMOVAL 1.
Disconnect battery negative cable at battery.
2.
Disconnect IAC valve coupler.
3.

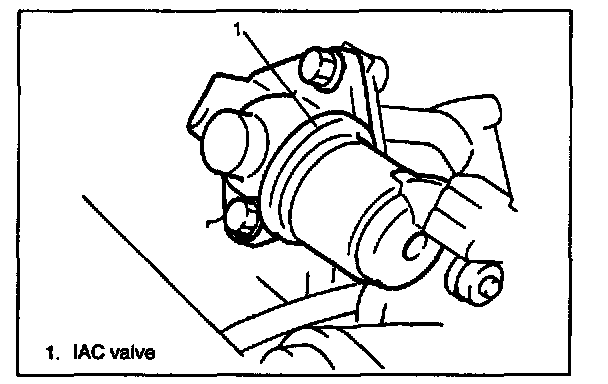

Remove IAC valve from intake manifold.

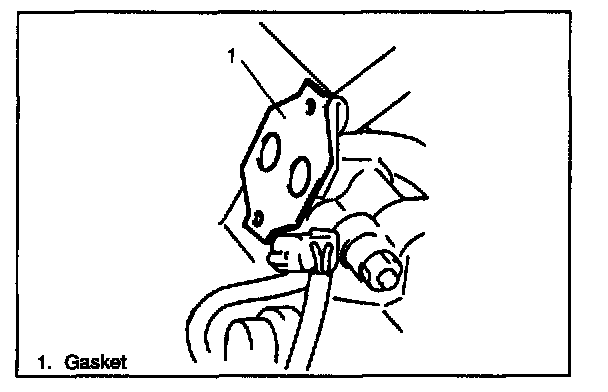

INSTALLATIONFor installation, reverse removal procedure and use new gasket.
