On-Vehicle Service

GENERAL

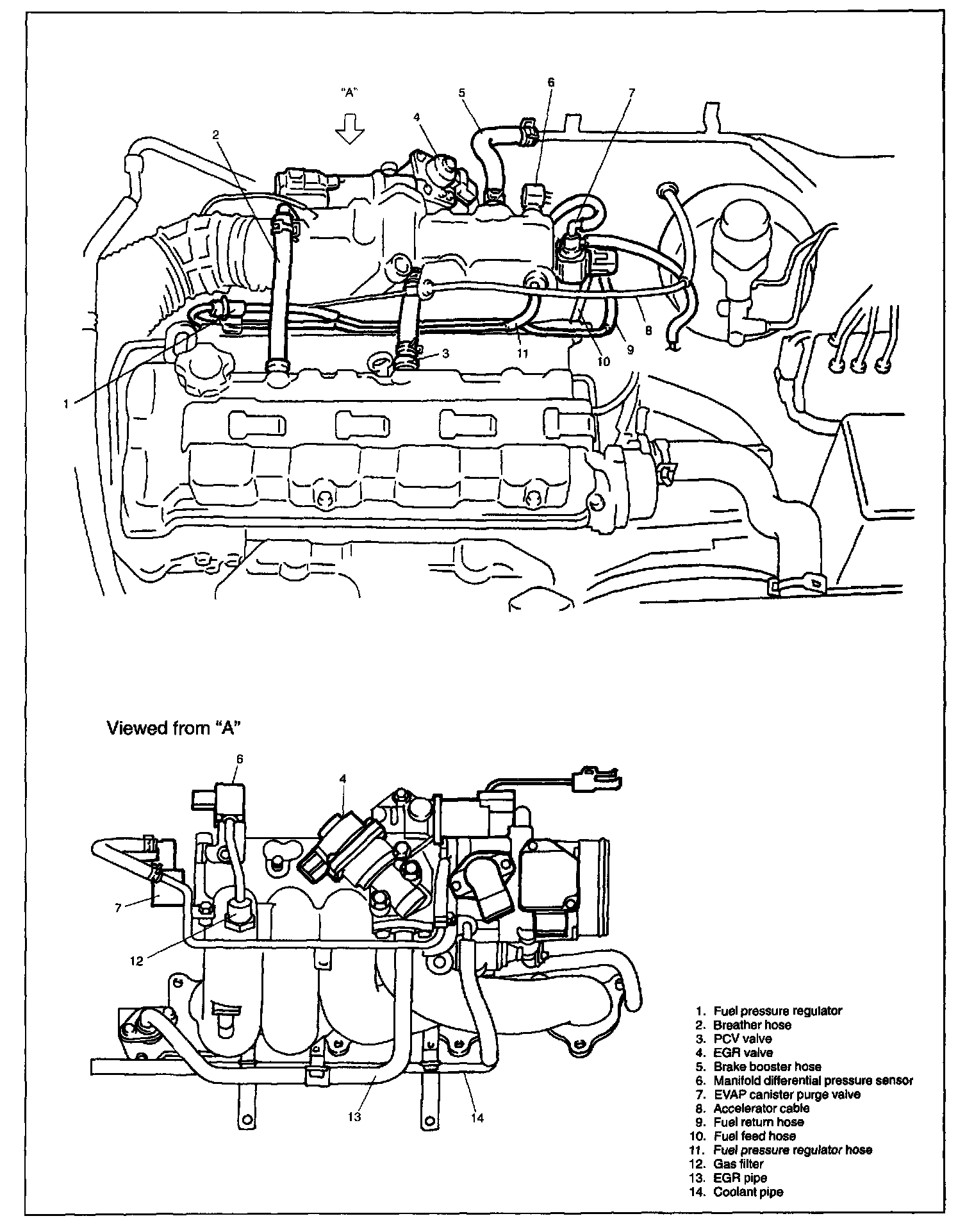

When hoses are disconnected and system components are removed for service, reinstall components properly, and route and connect hoses correctly after service. Refer to figure for proper routing of hoses.
