Child Seat Tether Attachment: Service and Repair

Child Tether Anchor Installation

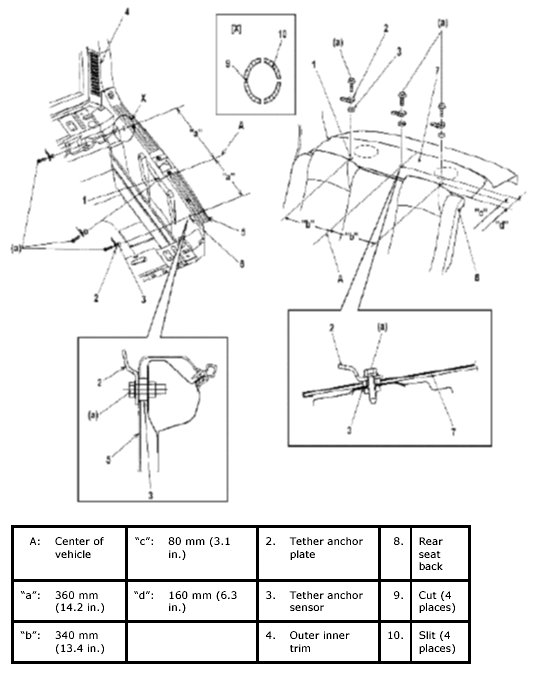

Select the desired rear seat installation position, remove the tether anchor cap (1) or pre-slit area (6) from back panel trim (5) (WAGON) and remove the tether anchor cap from partition trim (7) (SEDAN).

Install the enclosed tether anchor hardware as shown.

Tighten securely.

Tightening torque
Tether anchor plate bolt (a): 20 N.m (2.0 kg-m, 14.5 lbf-ft)
