Blower Motor Switch: Service and Repair

Heater Mode Control Switch

REMOVAL




1. Disconnect negative (-) cable at battery.
2. If equipped with air bag system, disable air bag system.

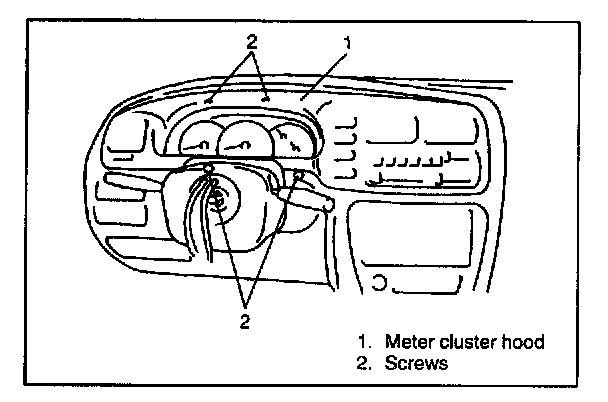

3. Remove meter cluster hood.

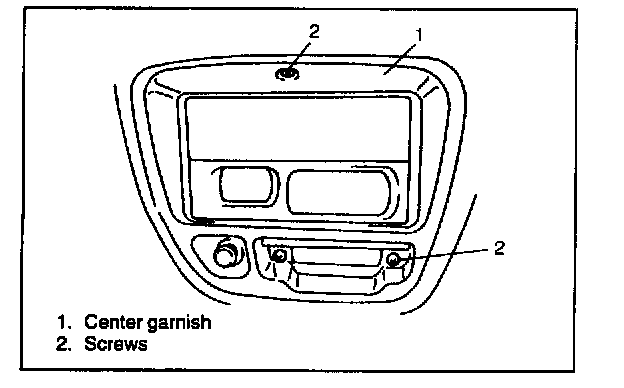

4. Remove ashtray, center garnish and instrument glove box compartment.




5. Remove radio (if equipped) or clock or accessory case.

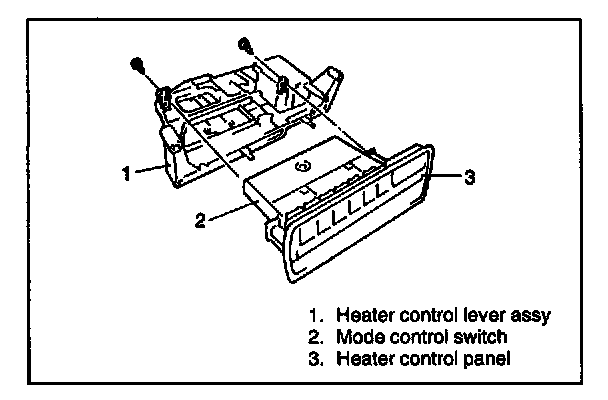

6. Remove mode control switch with heater control panel from the above removed hole.
7. Remove heater control panel from heater mode control switch.

INSTALLATION
1. Install in reverse order of removal procedure.
2. If equipped with air bag system, enable air bag system.
