Compressor Clutch Relay: Testing and Inspection

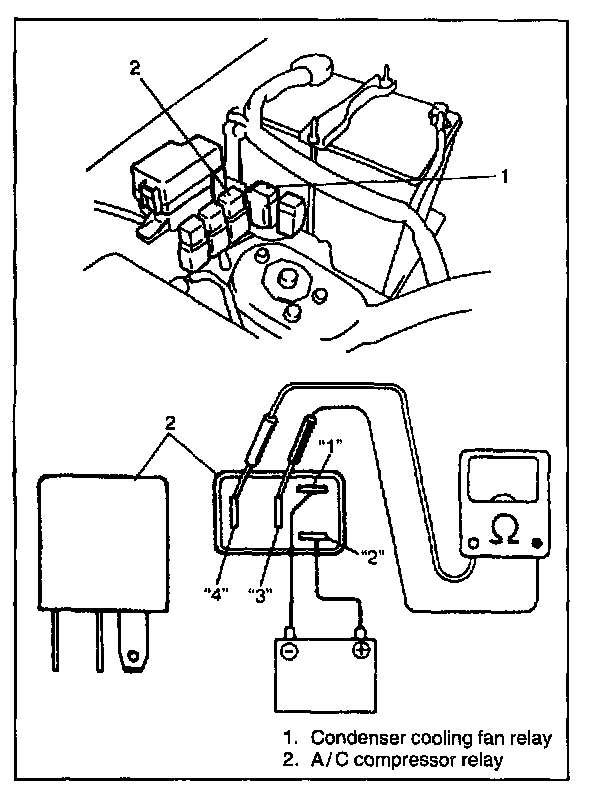

A/C COMPRESSOR RELAY INSPECTION 1.
Disconnect negative cable at battery.
2.
Remove A/C compressor relay from vehicle.
3.
Connect battery positive (+) terminal to terminal "2" of
relay. Connect battery negative (-) terminal to terminal "1" of relay. Check continuity between terminal "3" and "4".
If there is no continuity when
relay is connected to the battery, replace relay.
