Control Assembly: Service and Repair

Control Lever Assembly

REMOVAL
1. Disconnect negative (-) cable at battery.
2. If equipped with air bag system, disable air bag system.
3. Remove mode control switch, refer to step 3) to 6) of item MODE CONTROL SWITCH REMOVAL.
4. Remove glove box.

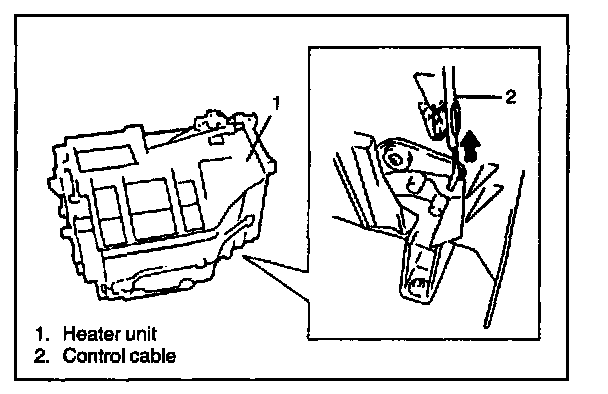

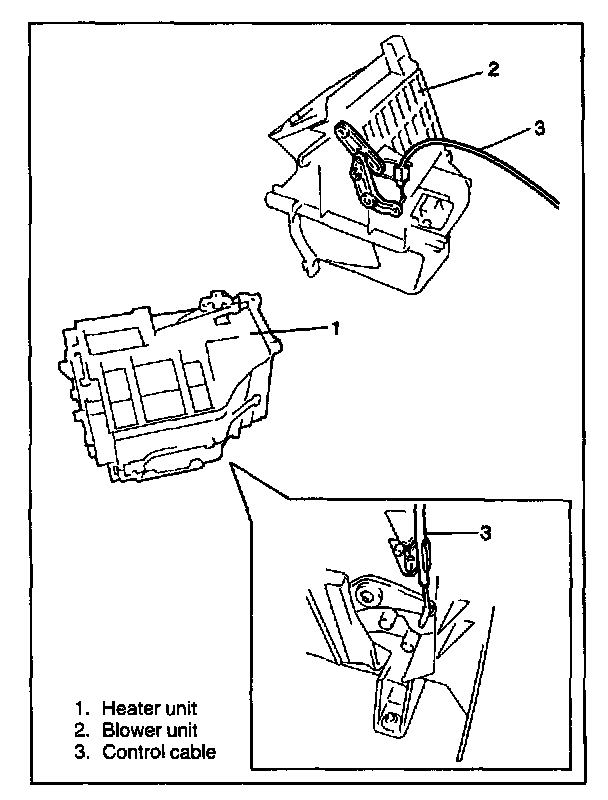

5. Disconnect control cables from blower motor unit and heater unit.

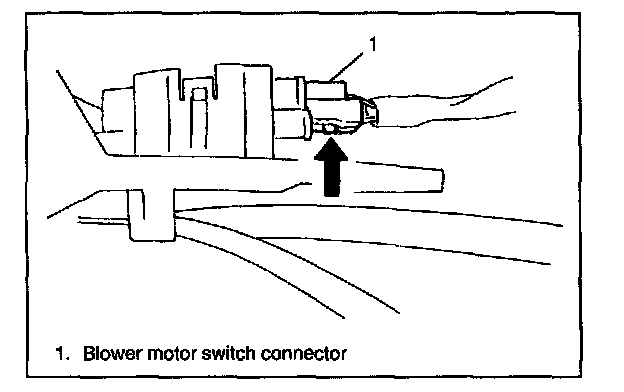

6. Disconnect heater blower motor switch connector.

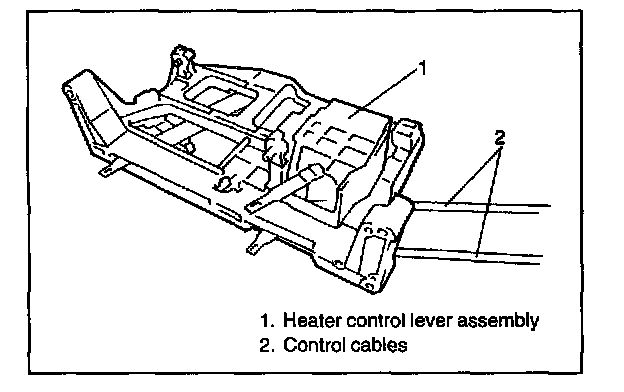

7. Remove heater control lever assembly.

INSTALLATION

1. Install in reverse order of removal procedure.
2. Adjust cables as follows.




1. Move control lever fully in arrow direction.




2. Push heater lever fully in arrow direction and fix cable with clamp in position as shown in the figure.




3. Push blower lever fully in arrow direction and fix cable with clamp in position as shown in the figure.

NOTE: After Installing control cables, be sure that control levers move smoothly and stop at proper position.

3. If equipped with air bag, enable air bag system.
