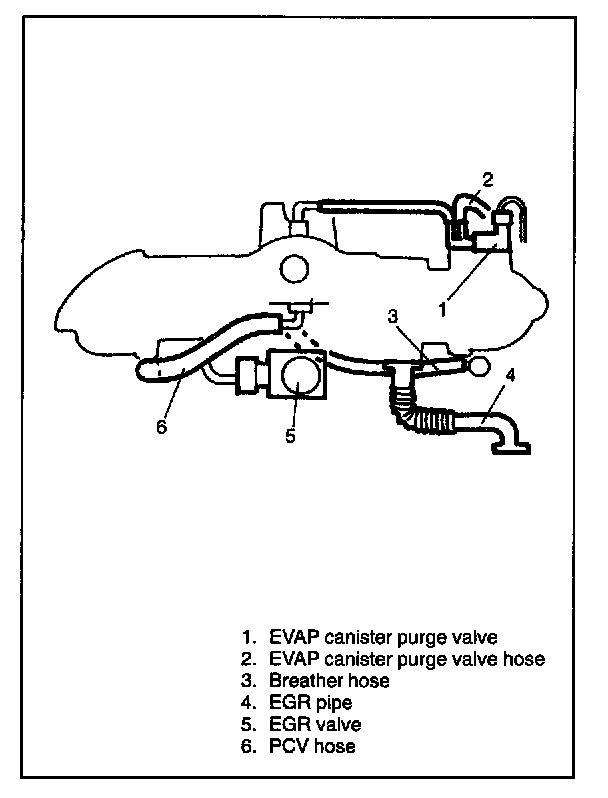

Exhaust Gas Recirculation: Service and Repair
Removal 1.
Disconnect negative cable at battery.
2.
Disconnect
EGR valve coupler.
3.
Remove
EGR valve and gasket from intake collector.
InstallationReverse removal procedure noting following.
-
Clean mating surface of valve and intake manifold.
-
Use new gasket.
