Inspection
1.

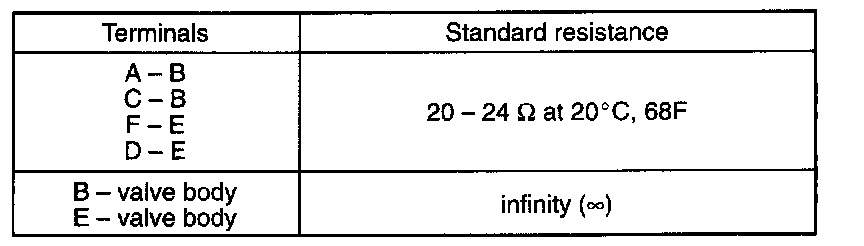

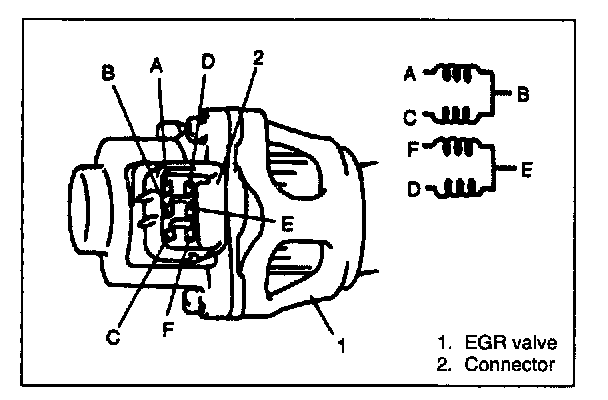

Check resistance between following terminals of
EGR valve in each pair.
If found faulty, replace
EGR valve assembly
2.

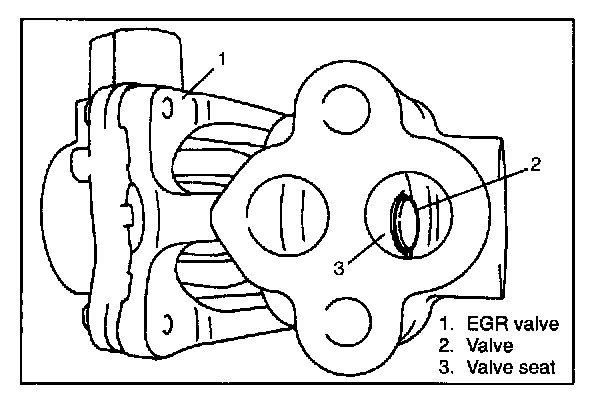

Remove carbon from
EGR valve gas passage.
NOTE: Do not use any sharp-edged tool to remove carbon.
Be careful not to damage or bend
EGR valve, valve seat and rod.
3.
Inspect valve, valve seat and rod for fault, cracks, bend or other damage.
If found faulty, replace
EGR valve assembly.
