Table A-2

DIAGNOSTIC FLOW TABLE A-2 (NO GEAR SHIFT TO O/D)
SYSTEM DESCRIPTION
PCM does not shift to O/D gear under any of the following conditions.
- O/D cut switch: ON
- 4WD LOW switch: ON
- Cruise control module: O/D OFF command signal is output.
- ECT: ECT < 30° C (86° F)

TROUBLESHOOTING

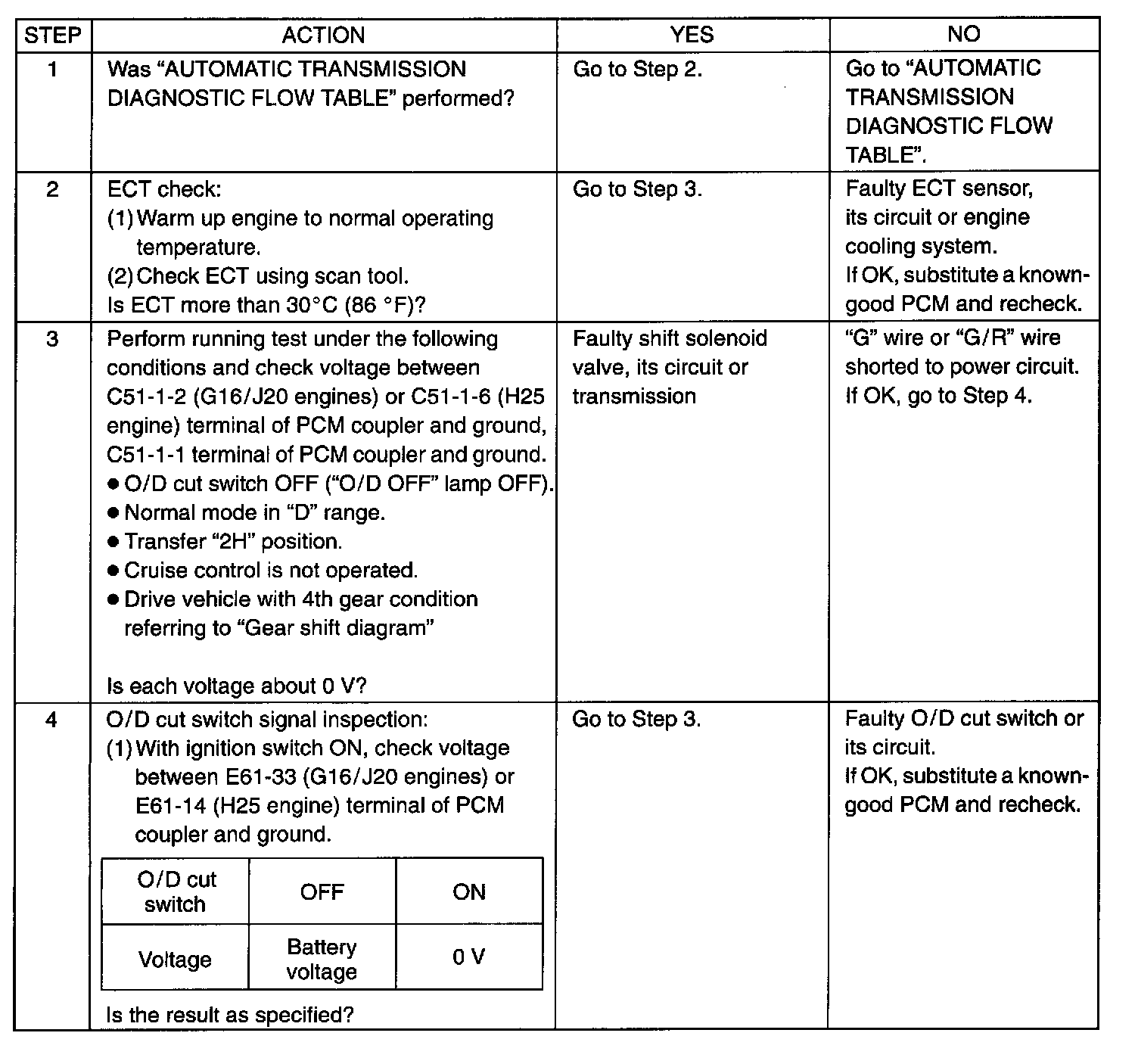

Step 1 - 4

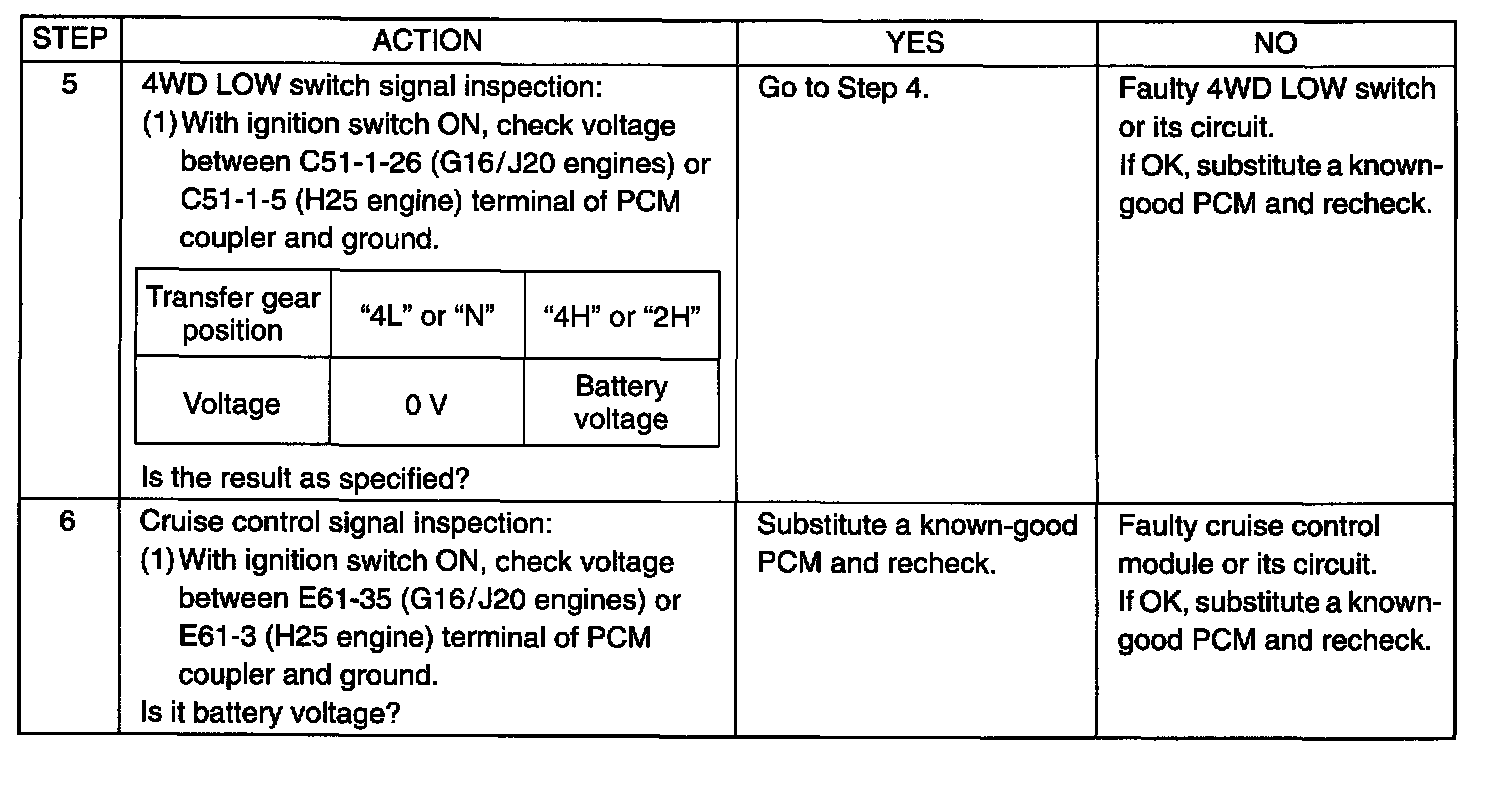

Step 5 - 6

WARNING:
- When performing a road test, select a place where there is no traffic or possibility of a traffic accident and very careful during to avoid occurrence of an accident.
- Road test should be carried out with 2 person, a driver and tester, on a level road.
