Blower Motor: Service and Repair

Blower Motor

Heater Blower Motor:

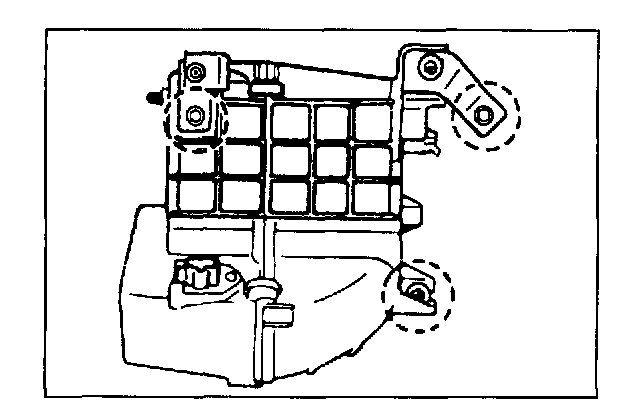

REMOVAL
1. Disconnect negative (-) cable at battery.
2. Disable air bag system.
3. Remove glove box and ECM.

4. Disconnect blower motor and resistor lead wires at couplers.
5. Disconnect fresh air control cable from motor unit.
6. Remove blower motor unit.

7. Remove blower motor.

INSTALLATION
1. Reverse removal procedure for installation.
2. Enable air bag system.
