Compressor Mount
1.
Check mounting bolt for looseness.
2.
Check mounting bracket for crack or fracture.
When retightening the bolt, use specified torque.

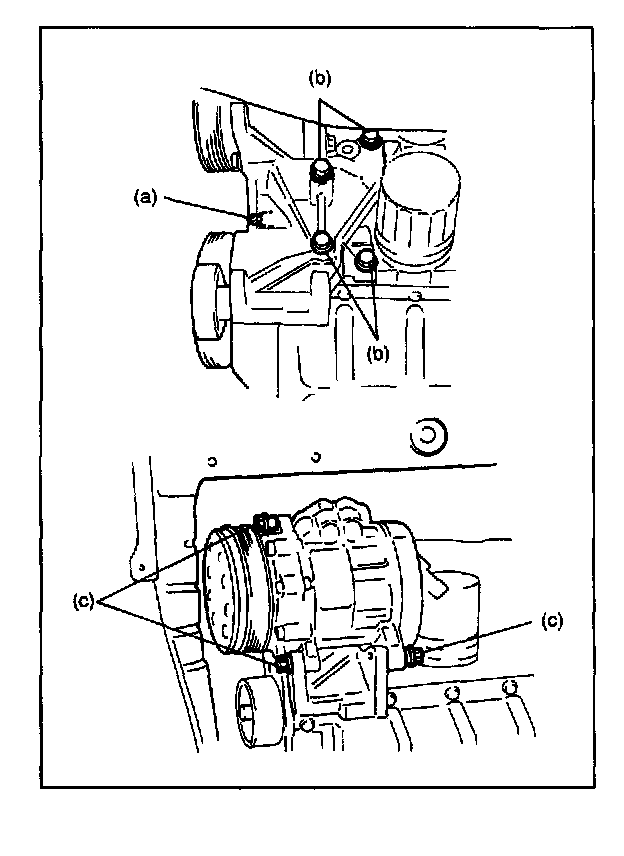

Tightening Torque
a:
35 Nm (3.5 kg.m, 25.5 lb.ft) b:
65 Nm (6.5 kg.m, 47.0 lb.ft) c:
23 Nm (2.3 kg.m, 17.0 lb.ft)
