Throttle Position Sensor: Adjustments
ADJUSTMENT 1.

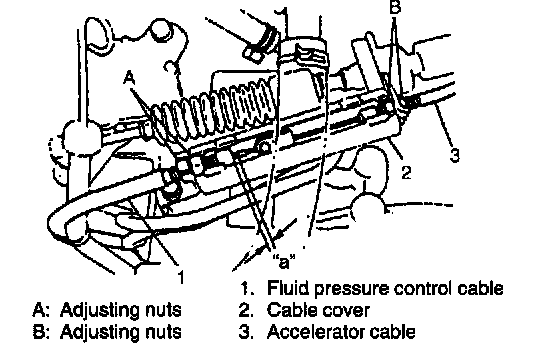

With cable cover removed, adjust clearance "a" to specification by turning nuts B. Nuts A can be used for this adjustment if necessary.
Clearance "a":
0 - 1.0 mm (0 - 0.04 inch) 2.
Tighten nuts and install cable cover.
