Refueling Control Valve: Service and Repair

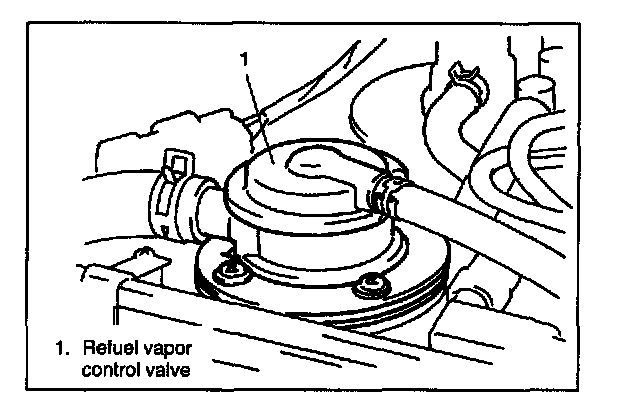

Refuel Vapor Control Valve




Removal
1. Remove fuel tank from vehicle body.
2. Disconnect hoses from vapor control valve.
3. Remove vapor control valve from fuel tank.




Installation
1. Clean mating surfaces of refuel vapor control valve and fuel tank.

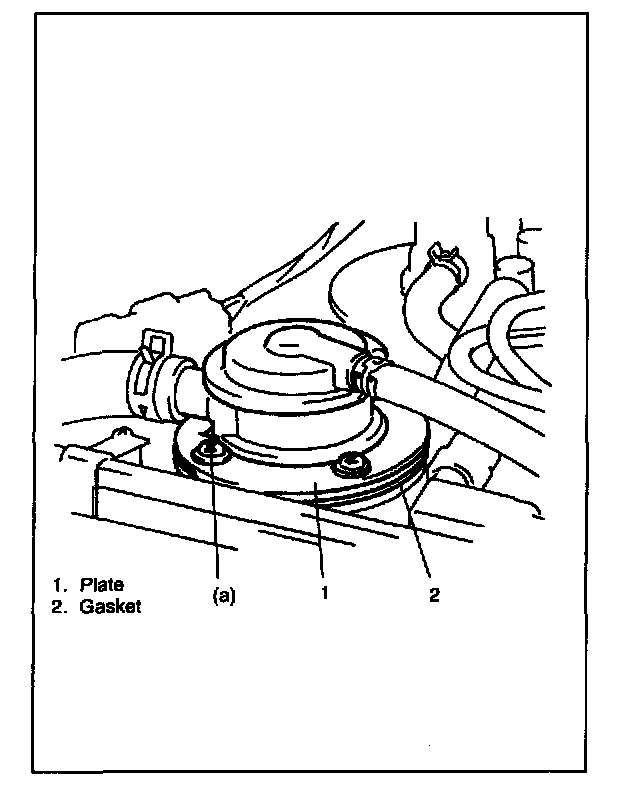

2. Install new gasket, refuel vapor control valve and plate to fuel tank.

NOTE: At this time, align screw holes in fuel tank gasket and plate accurately, or vapor may leak.

Tightening Torque
(a): 1.6 N.m (0.16 kg-m, 1.0 lb-ft)

3. Connect hoses to vapor control valve and clamp them securely.
4. Install fuel tank to vehicle body.
