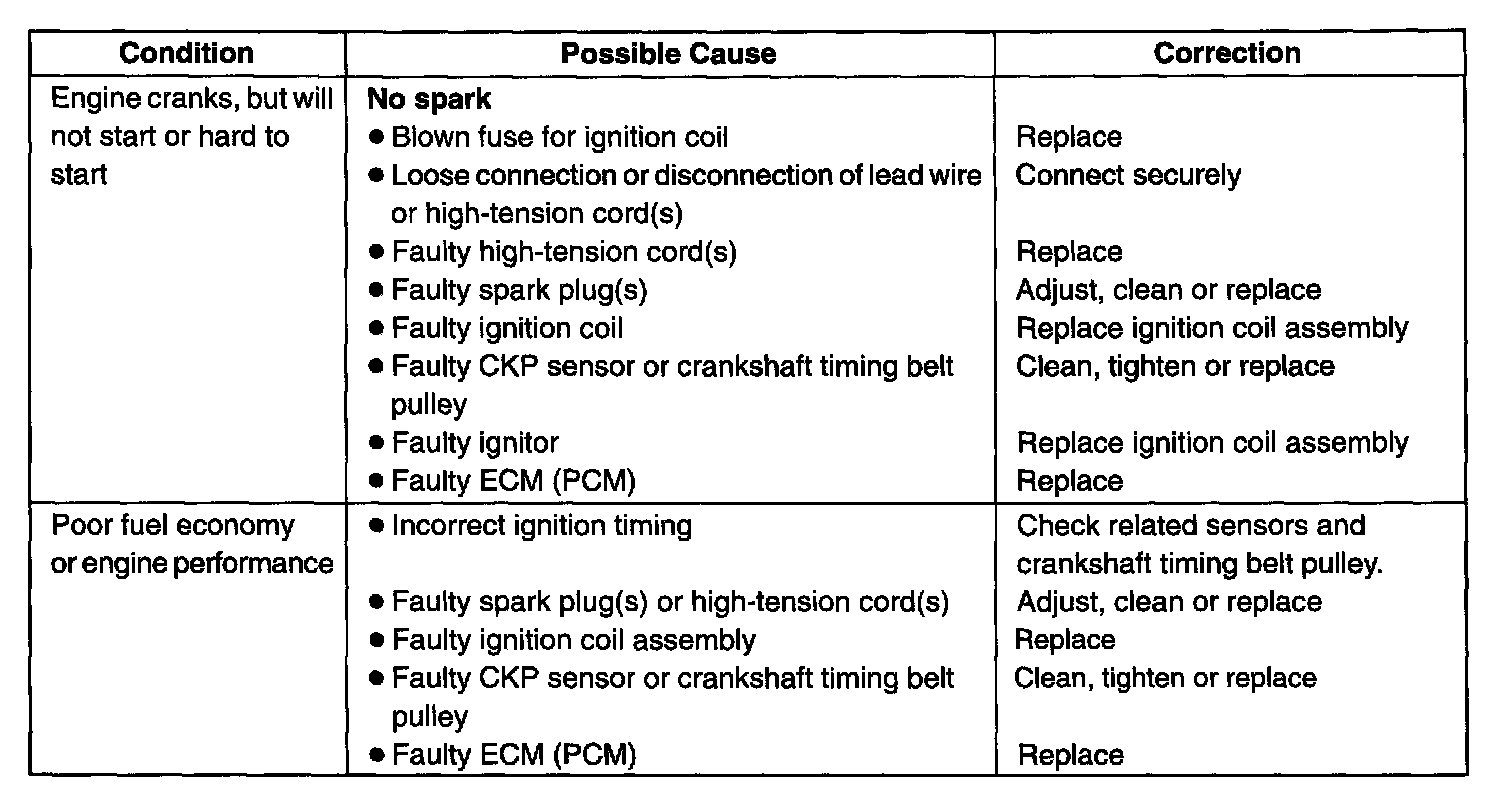

System Diagnosis

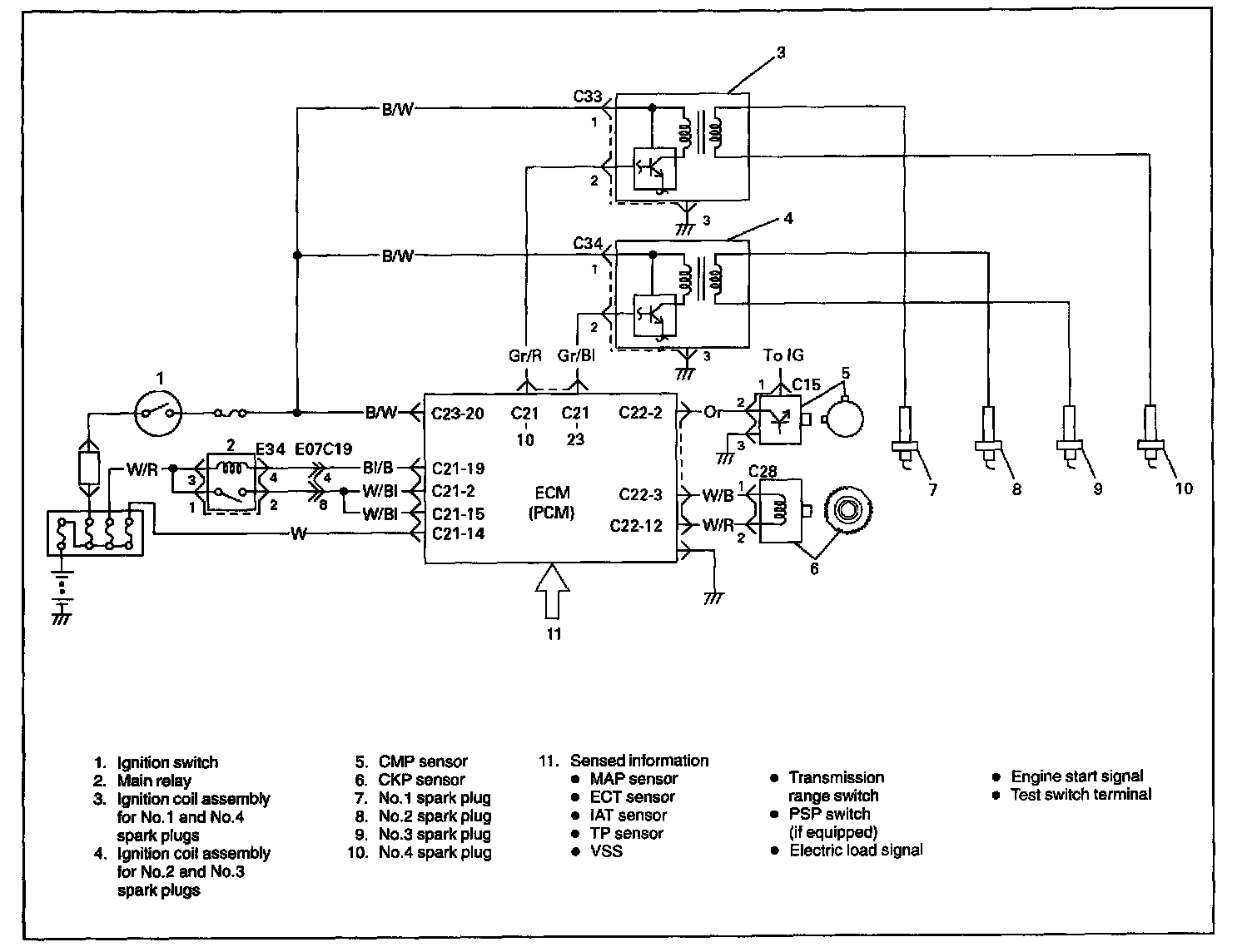

System Wiring Diagram:

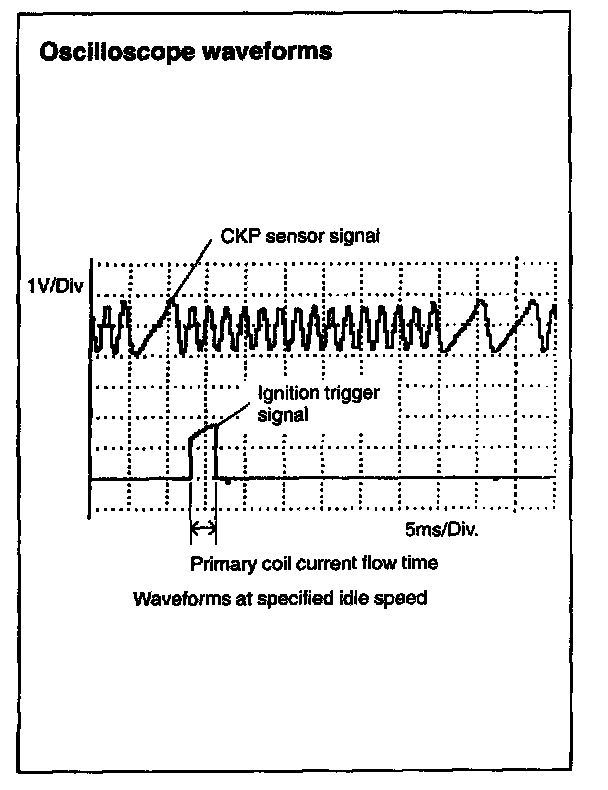

REFERENCEOscilloscope waveforms is as shown in figure when connecting oscilloscope between terminal C22-3 of ECM connector connected to ECM and body ground, and between terminal C21-10 (or C21-23) and body ground.
