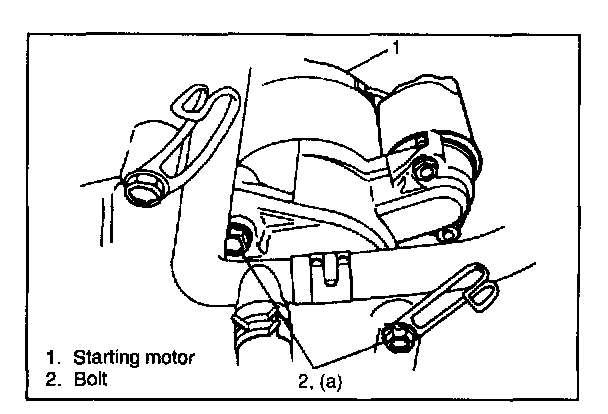

Removal/Installation
1.
Disconnect negative (-) battery lead at battery.
2.
Disconnect magnetic switch lead wire and battery cable from starting motor terminals.
3.
Remove 2 mounting bolts.
4.
Remove starting motor.
5.
To remount, reverse above procedure.
Tightening Torque
a:
23 Nm (2.3 kg.m, 17.0 lb.ft)
