Front Door Window Regulator: Service and Repair

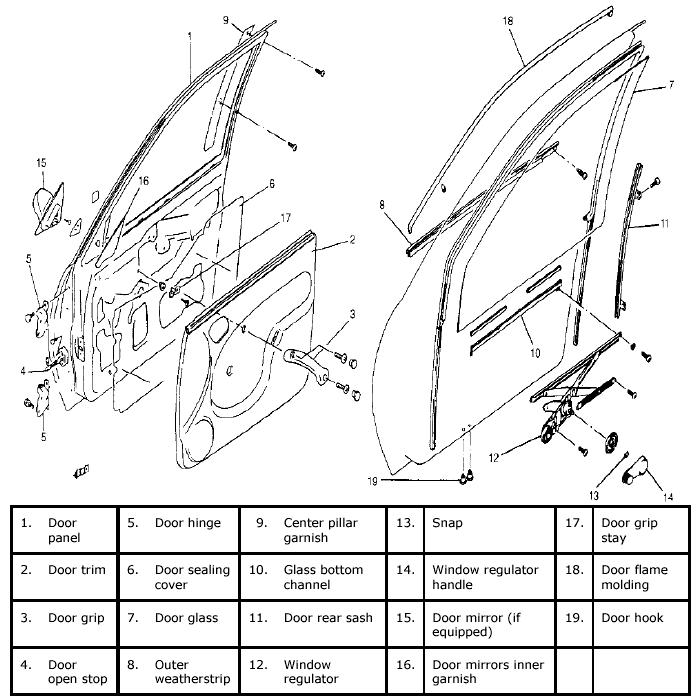

Front Door Window Regulator Removal and InstallationFront Door Glass Components:
Removal 1.
Remove door glass.
2.

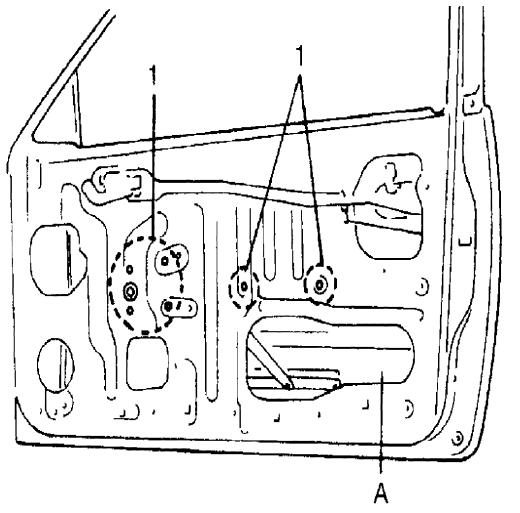

Remove window regulator attaching screws (1) (six pcs.).
Then, take out regulator through hole A.
InstallationReverse removal sequence to install door window regulator.
1.

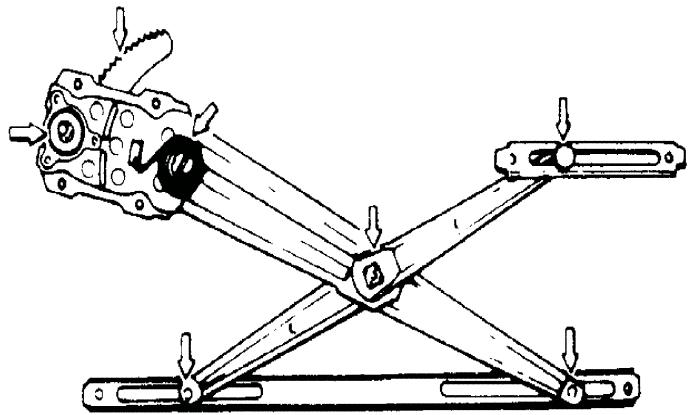

Apply multi-purpose grease to sliding parts.
