Spark Plug: Service and Repair





REMOVAL
1. Pull out high-tension cord while gripping its cap.
2. Remove ignition coil assembly, referring to "Ignition Coil Assembly" under "On-Vehicle Service".

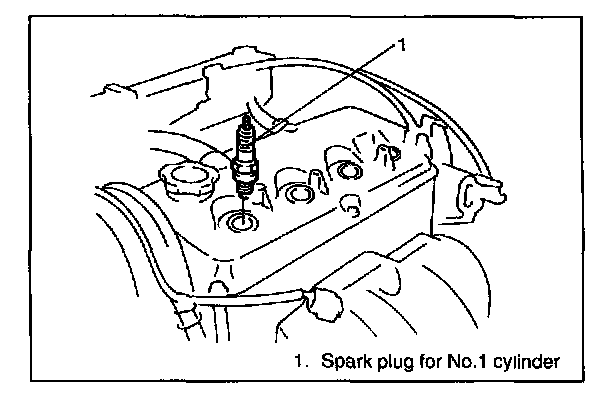

3. Remove spark plug




INSTALLATION

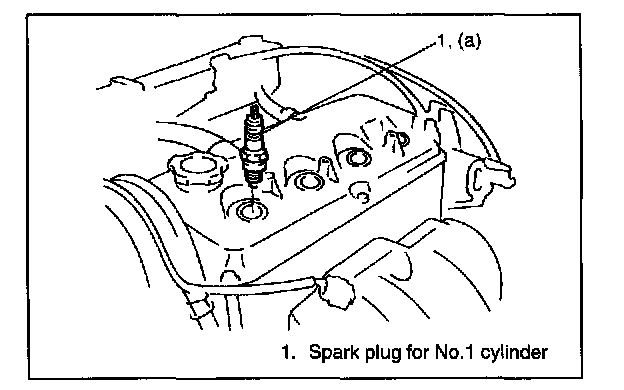

1. Install spark plug and tighten them to specified torque.

Tightening Torque
(a): 25 Nm (2.5 kg.m, 18.0 lb.ft)

2. Install ignition coil assembly, referring to "Ignition Coil Assembly" under "On-Vehicle Service".
3. Install high-tension cord while gripping its cap.
