Powertrain Management: Locations

WIRE HARNESS AND CONNECTORS
Terminal assignment on each connector below indicates viewed from terminal side.

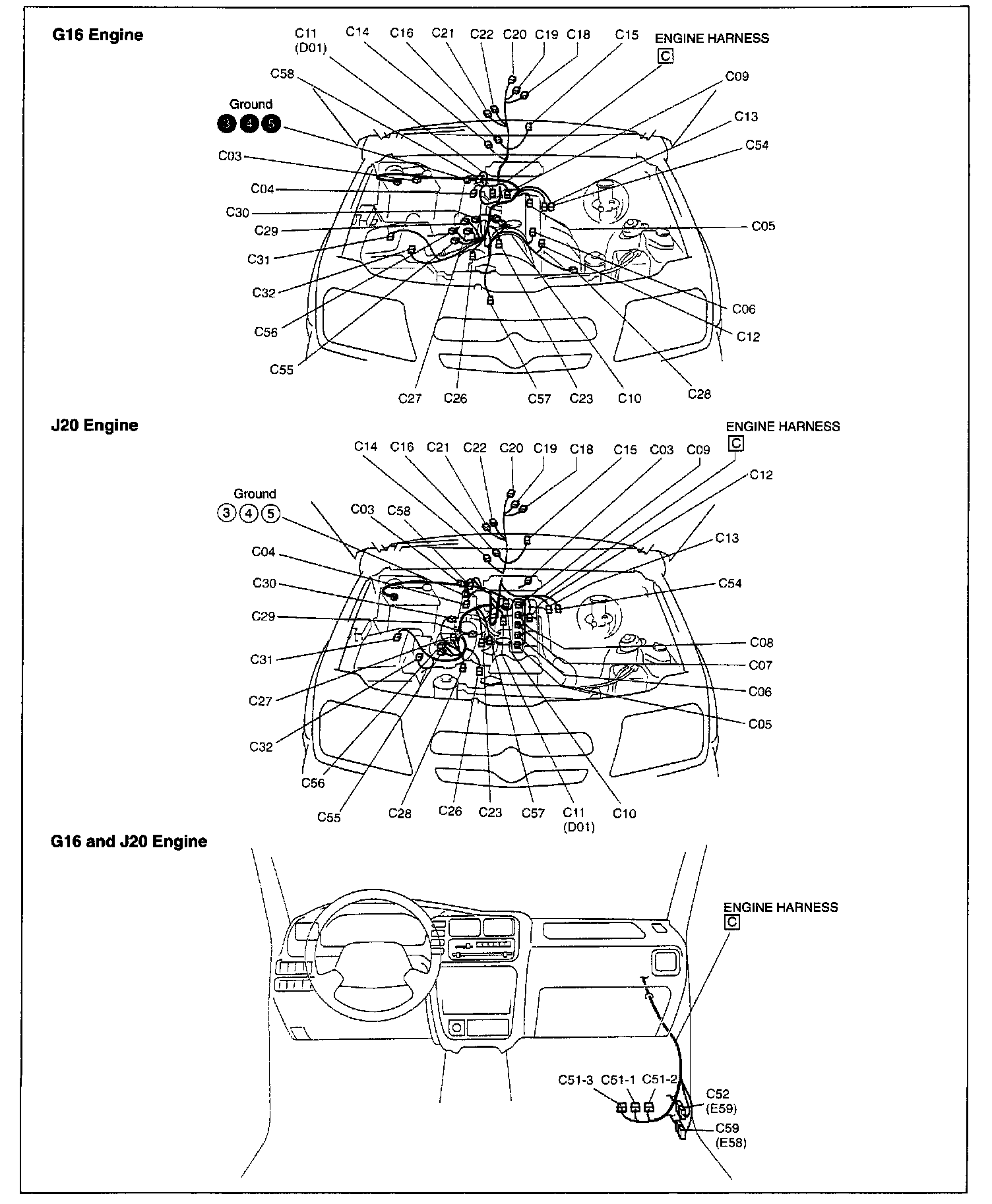

Engine Harness (connectors "C") - Location:

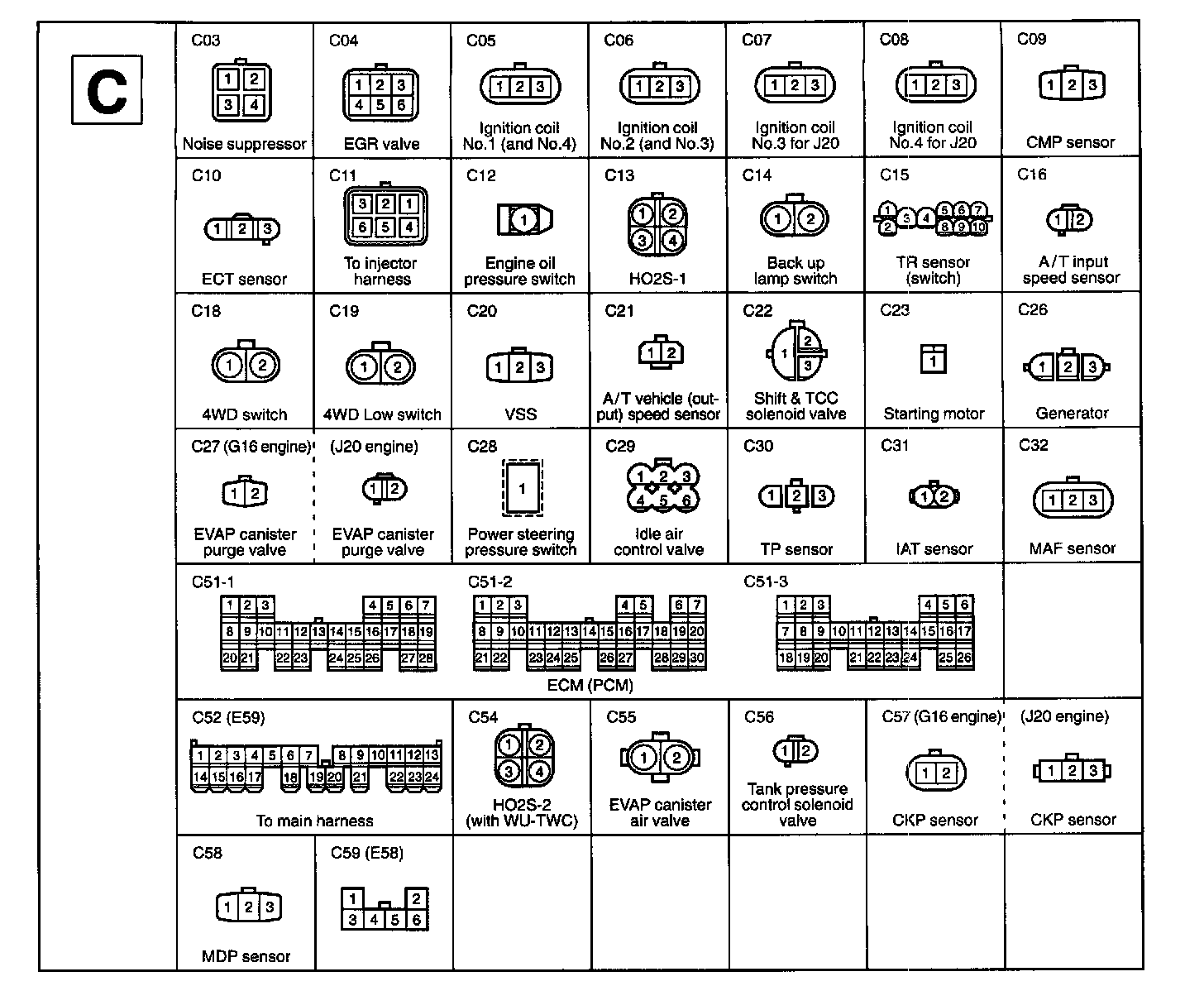

Engine Harness Connector "C" - View:

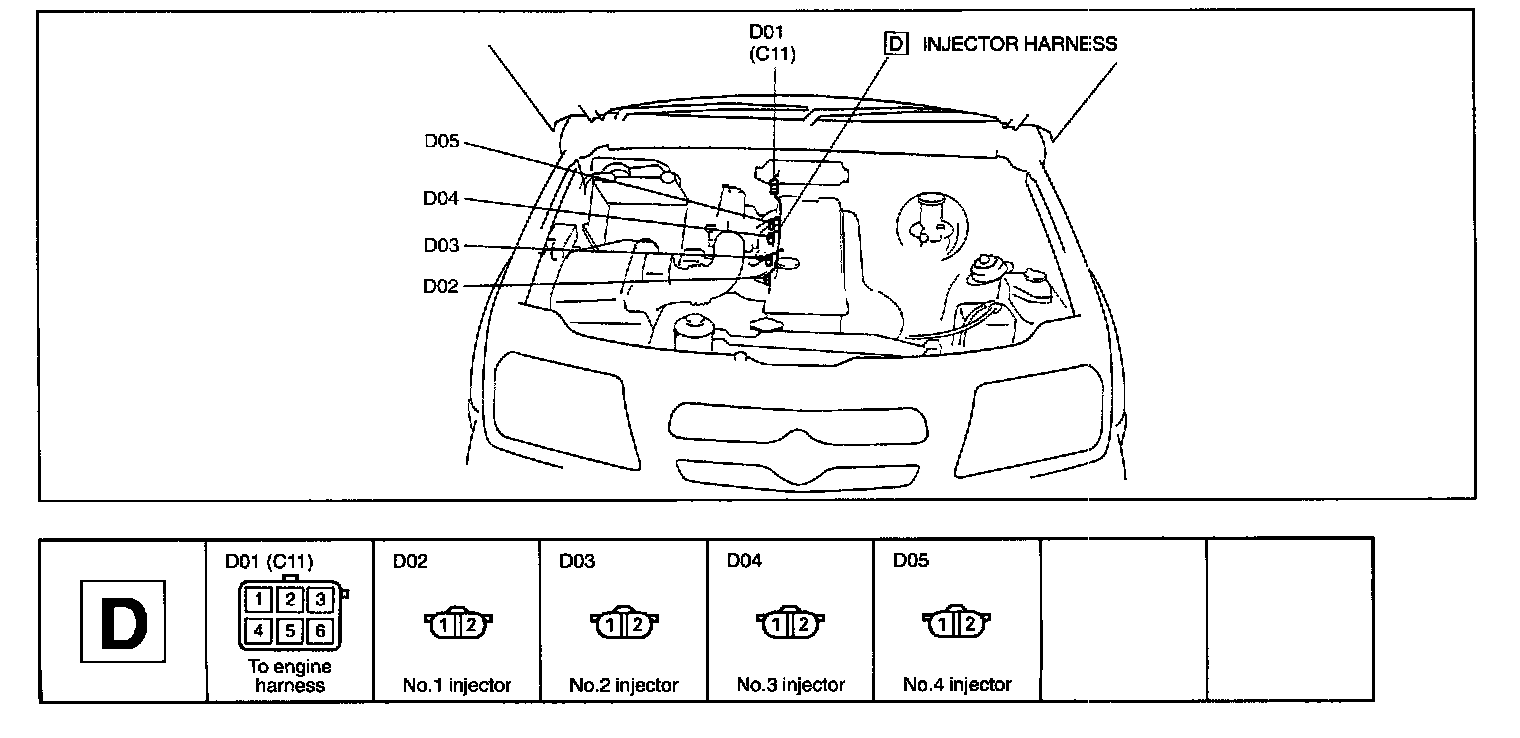

Injector Harness (Connectors "D"):

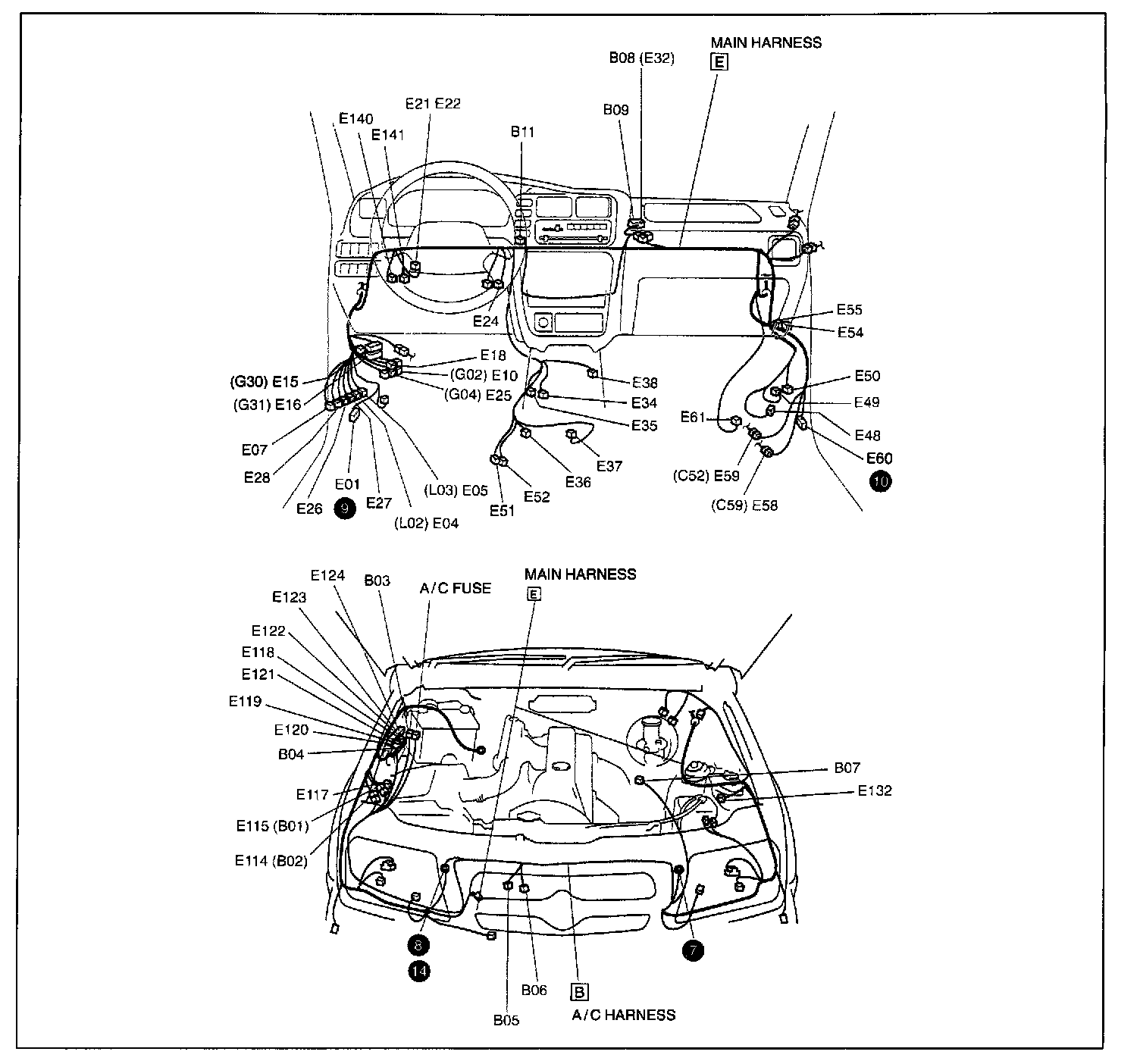

Main Harness (connectors "E") And A/C Harness (connectors "B") - Location:

A/C Harness Connector"B" - View:

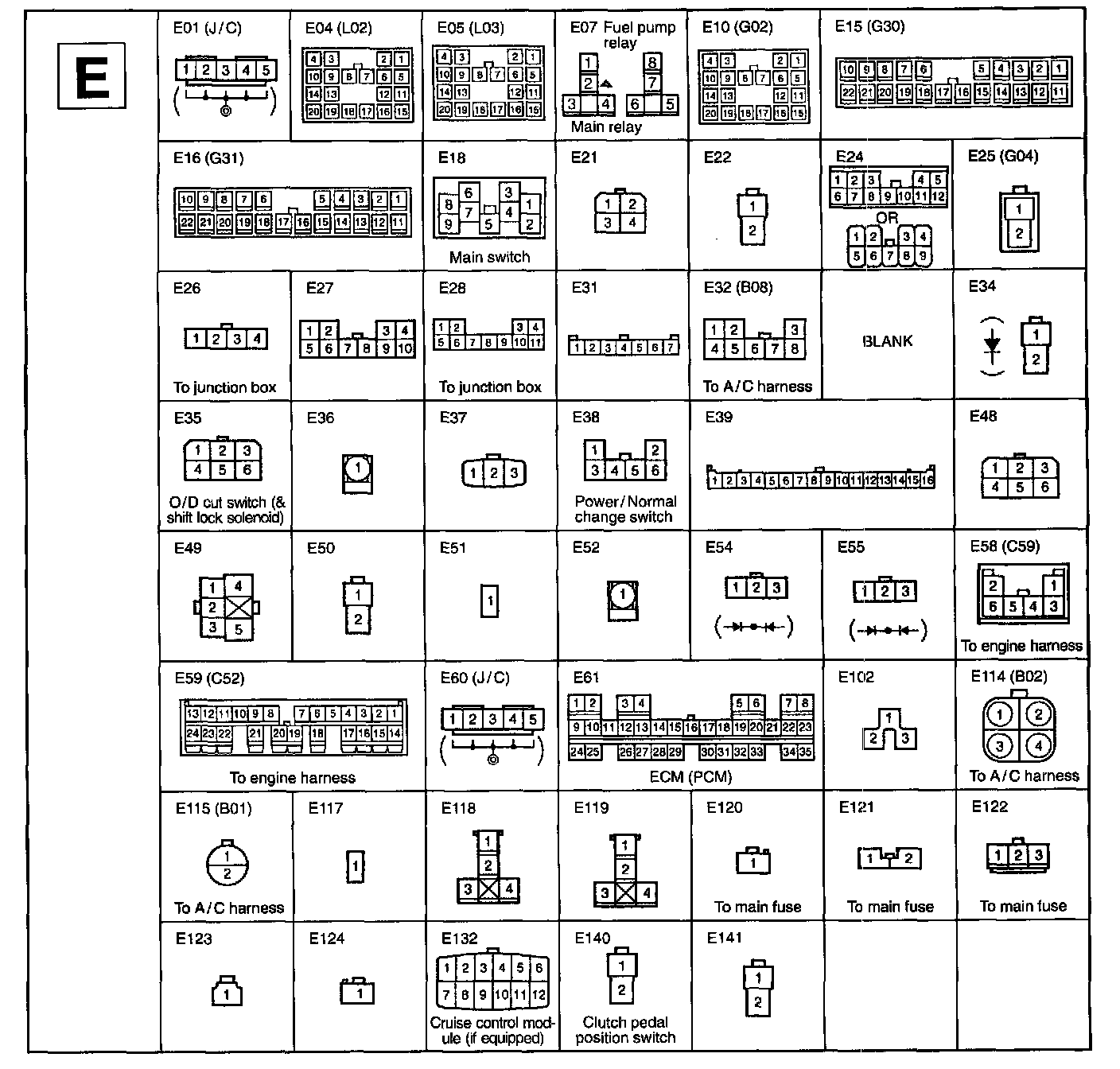

Main Harness Connector"E" - View:

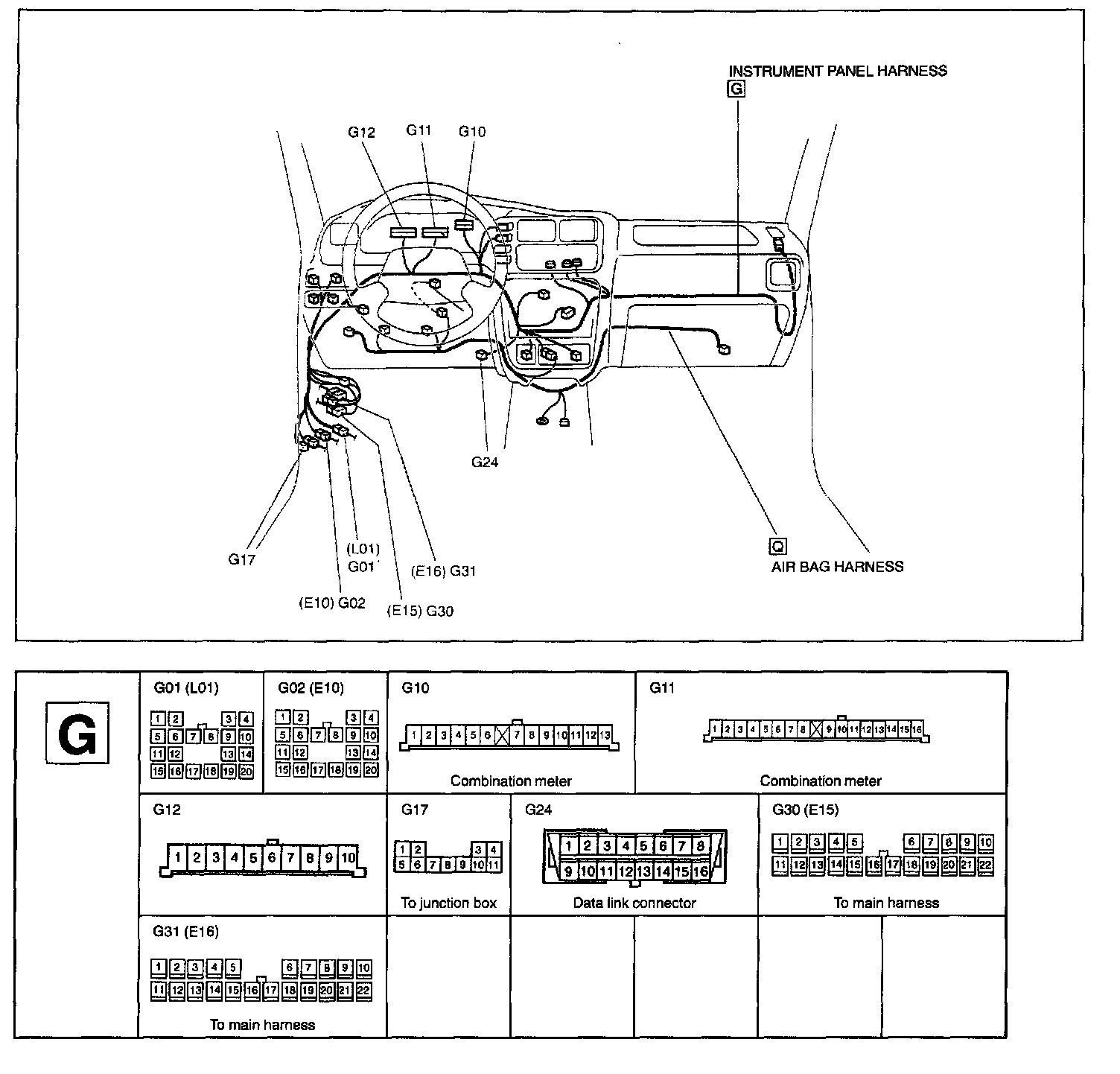

Instrument Panel Harness (Connectors "G"):

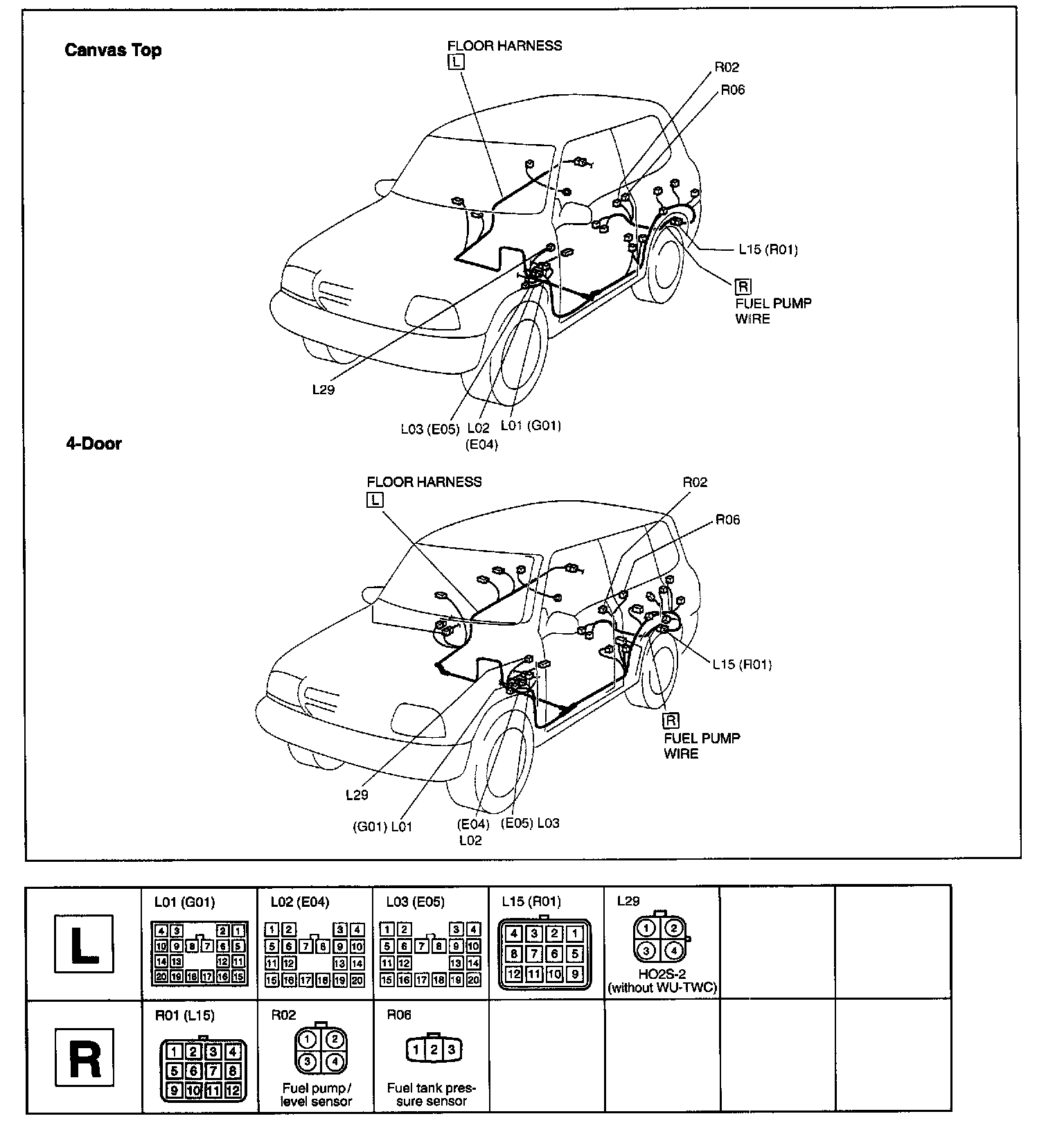

Floor Harness (Connectors "L") And Fuel Pump Harness (Connectors "R"):
