Cruise Main Switch

Cruise Main Switch

1. Disconnect battery negative cable from battery.
2. Disconnect connector from cruise main switch.
3. Remove cruise main switch from instrument panel.

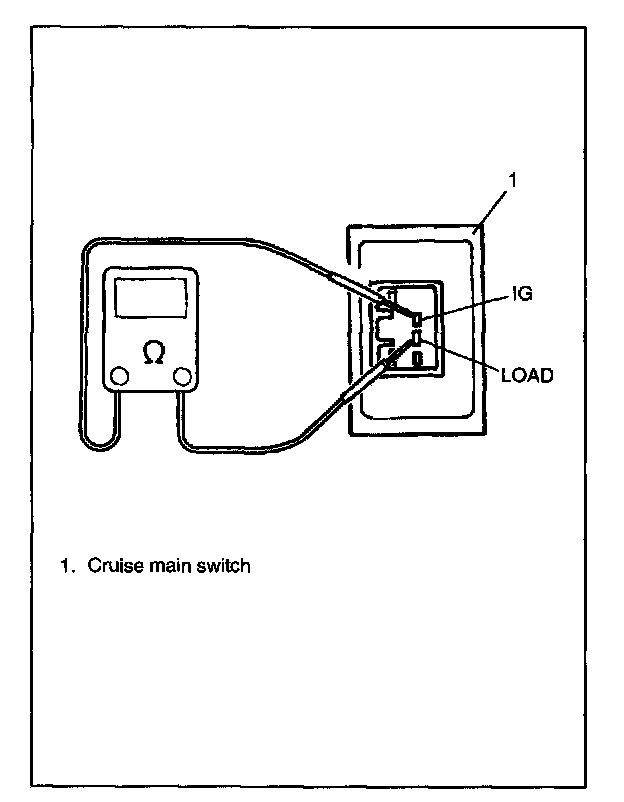

4. Check for resistance between "IG" and "LOAD" terminals.

Switch button released : Infinity
Switch button pressed : About 3.9 kohm

If check result is not satisfactory, replace.

5. Install cruise main switch to instrument panel and connect connector securely.
