Mode Control Switch

REMOVAL




1. Disconnect negative (-) cable at battery.
2. Disable air bag system.
Refer to DISABLING AIR BAG SYSTEM.
3. Pull of control lever knobs.

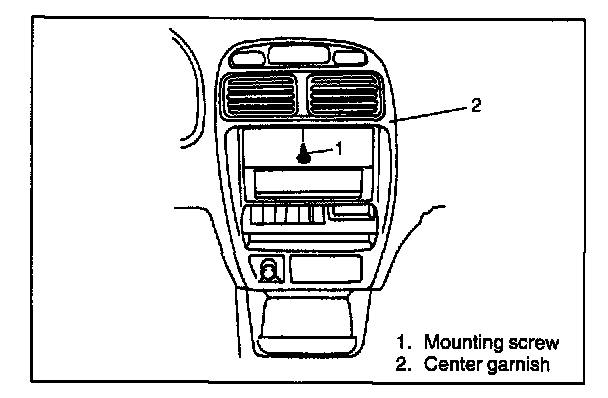

4. Remove center garnish mounting screw.
5. Remove center garnish with mode control switch.

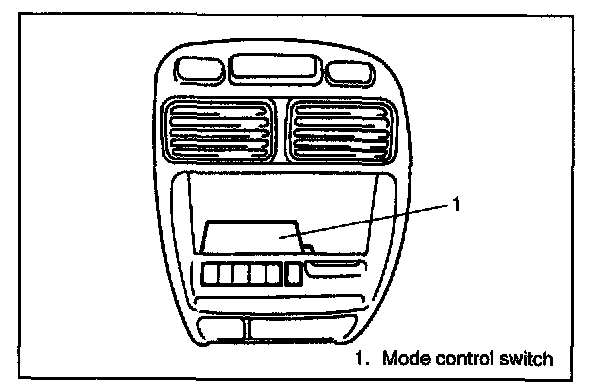

6. Remove mode control switch from center garnish.

INSTALLATION
1. Install in reverse order of removal.
2. Enable air bag system.
Refer to ENABLING AIR BAG SYSTEM.
