Data Link Connector: Description and Operation

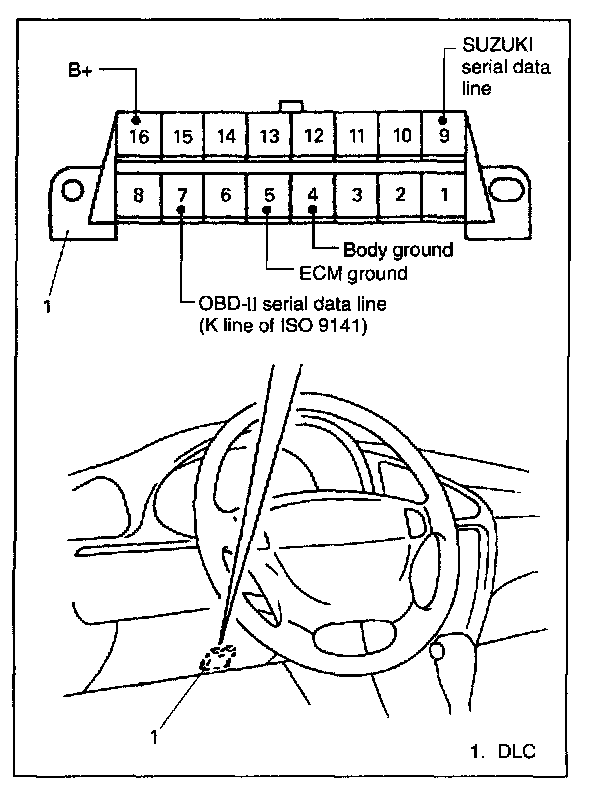

Data Link Connector (DLC)
DLC is in compliance with SAE J1962 in its installation position, the shape of connector and pin assignment.

OBD-II serial data line (K line of 1S09141) is used for SUZUKI scan tool or OBD-II generic scan tool to communicate with ECM. SUZUKI serial data line is used for SUZUKI scan tool to communicate with an electronic control unit other than ECM (Airbag SDM, ABS control module, etc.).
