Fail Safe Operation

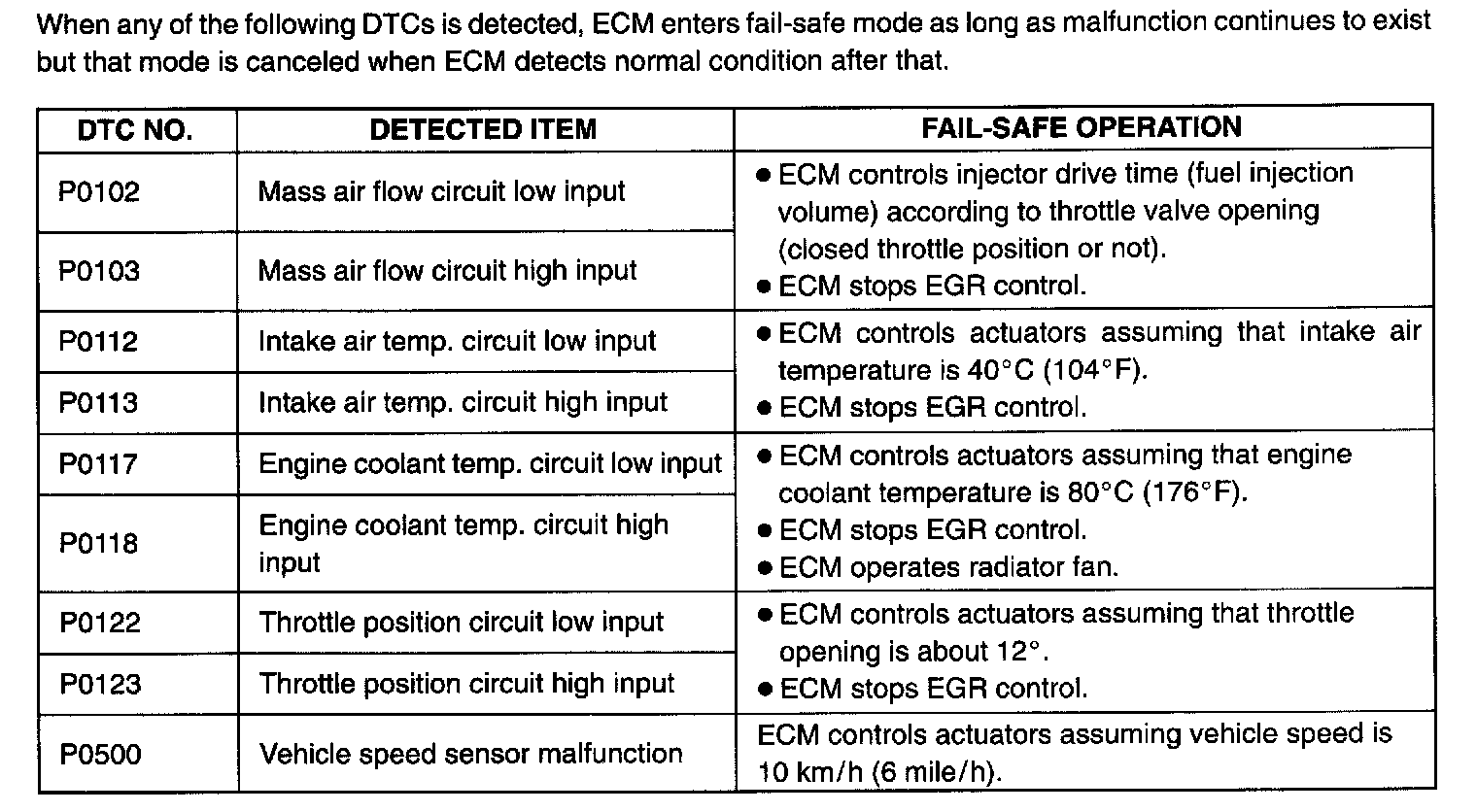

Fail-safe Table (P0102 - P0500):
FAIL-SAFE TABLEWhen any of the following DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
