System Diagnosis

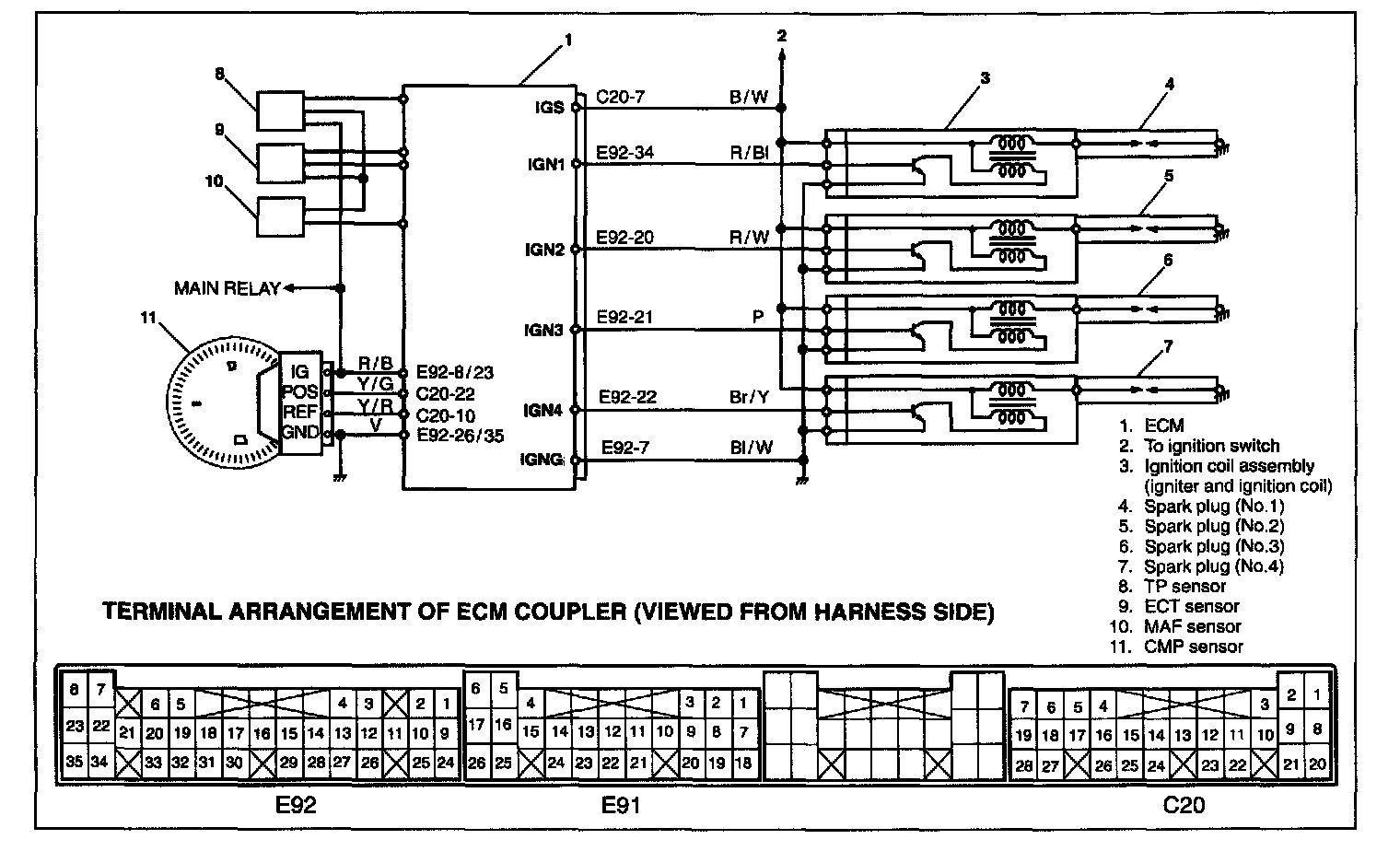

Warning Circuit:









Reference

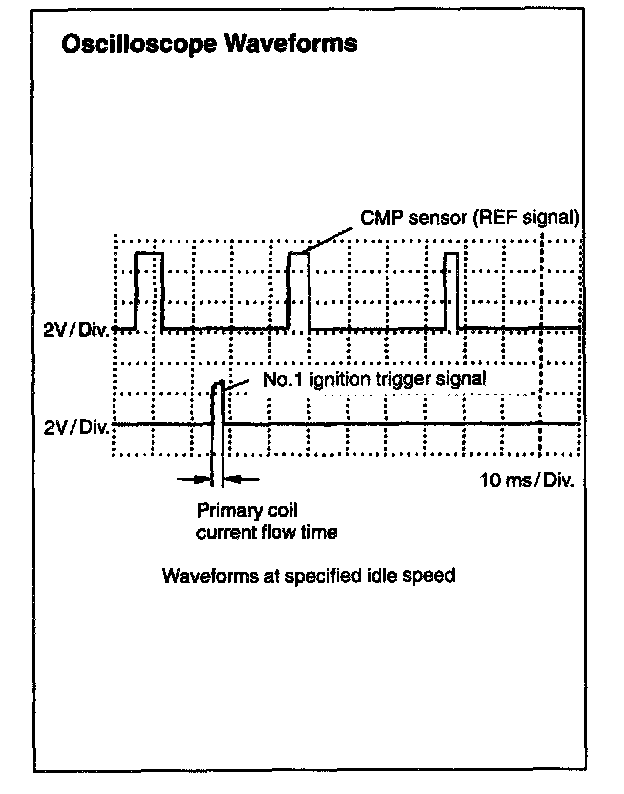

Oscilloscope waveforms of CMP sensor and No.1 ignition trigger signal are as shown in figure when connecting oscilloscope between terminals C20-10 of ECM (PCM) connectors connected to ECM (PCM) and ground, and between terminal E92-34 and ground.

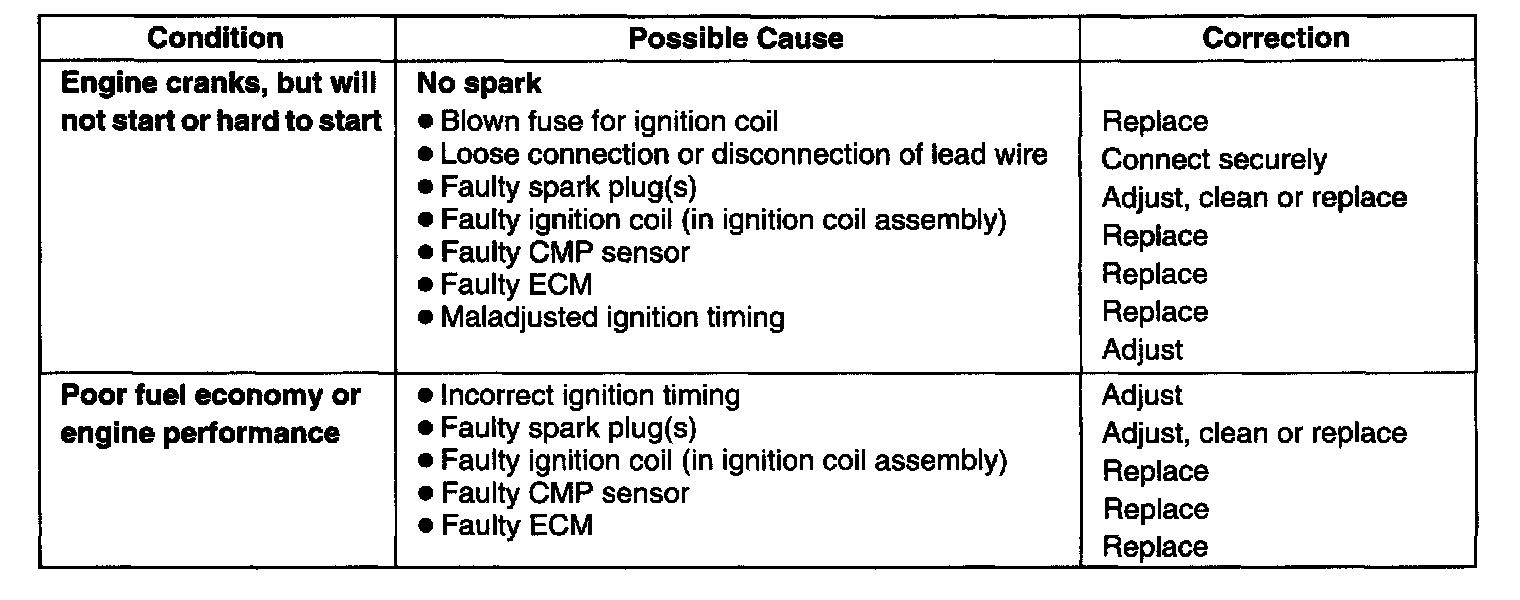

Diagnosis Table:
