Gear Shift and Select Shaft Assembly

INSTALLATION

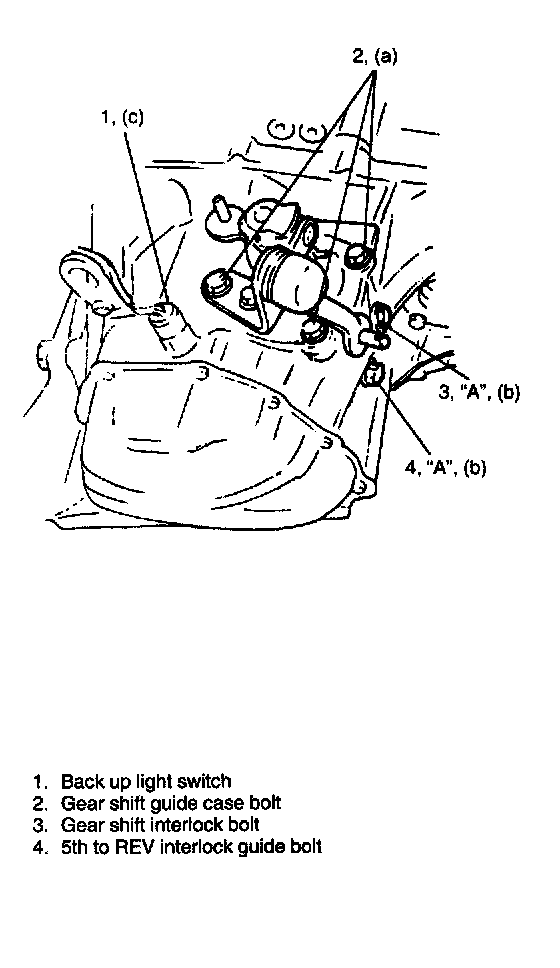

1. Clean mating surface of guide case.
2. Install gear shift and select shaft assembly with new gasket into transmission.
3. Place breather hose bracket and tighten it together with gear shift guide case bolts to specified torque.
Tightening Torque
(a): 19 Nm (1.9 kg-m, 14.0 ft. lbs.)
4. Install washer and gear shift interlock bolt applied with thread lock cement and then tighten it to specified torque.
Thread lock cement
"A": 99000-32110 (BOND No. 1322)
Tightening Torque
(b): 23 Nm (2.3 kg-m, 17.0 ft. lbs.)
5. Install washer and 5th to REV interlock guide bolt applied with thread lock cement and then tighten it to specified torque.
Thread lock cement
"A": 99000-32110 (BOND No. 1322)
Tightening Torque
(b): 23 Nm (2.3 kg-m, 17.0 ft. lbs.)
6. Tighten back up light switch to specified torque.
Tightening Torque
(c): 20 Nm (2.0 kg-m, 14.5 ft. lbs.)
7. Check input shaft for rotation in each gear position.
8. Also confirm function of back up light switch in reverse position by using ohmmeter.
