Power Window Main Switch

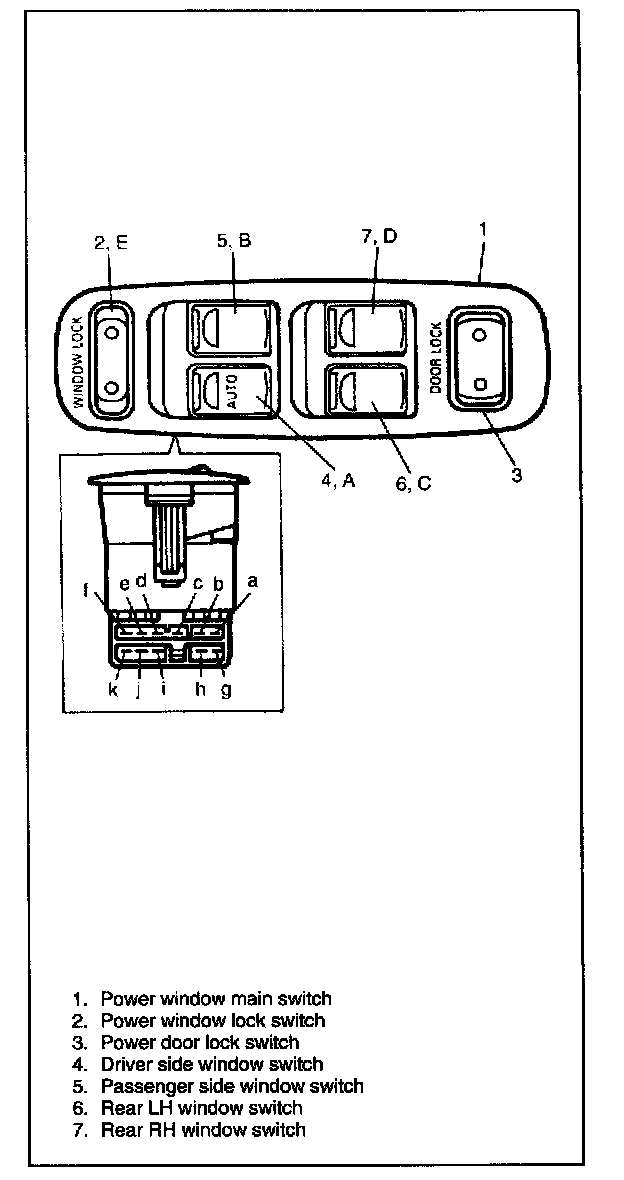

POWER WINDOW MAIN SWITCH
Inspect switch continuity between terminals.

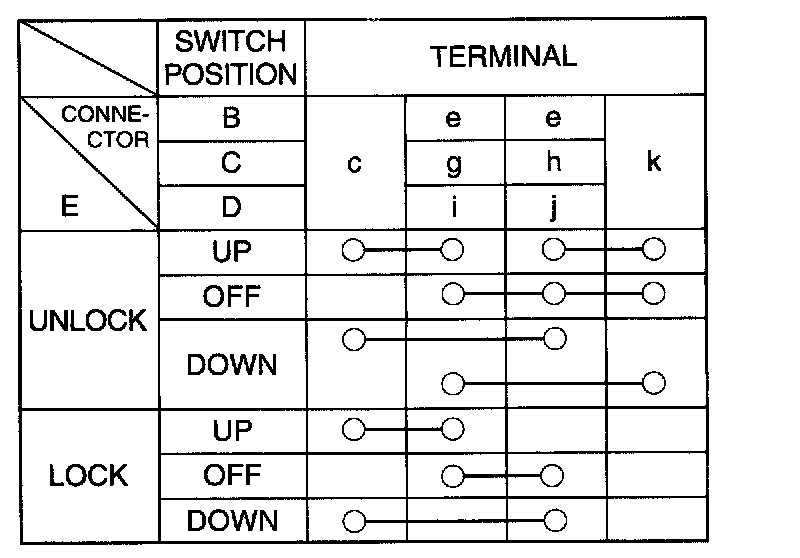

Driver side window switch

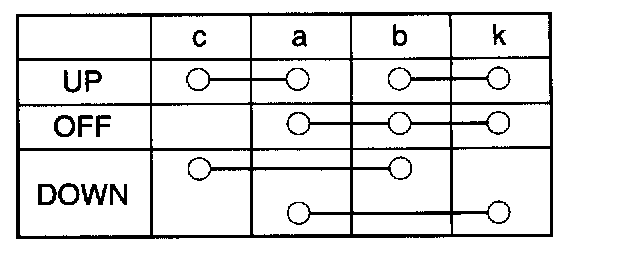

Passenger and rear side window switches.

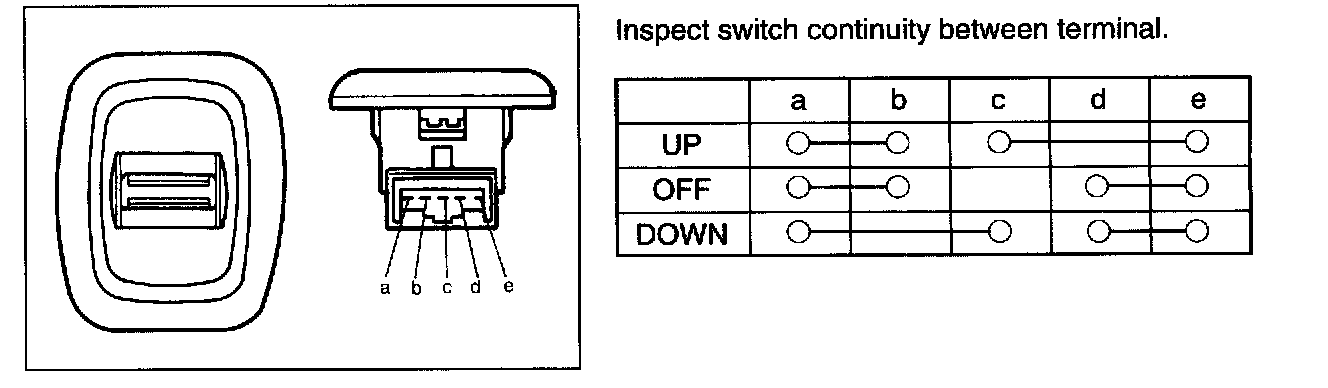

POWER WINDOW SUB SWITCH

Power Window Sub Switch Inspection:
