Front Fender: Service and Repair

Front Fender Removal and Installation

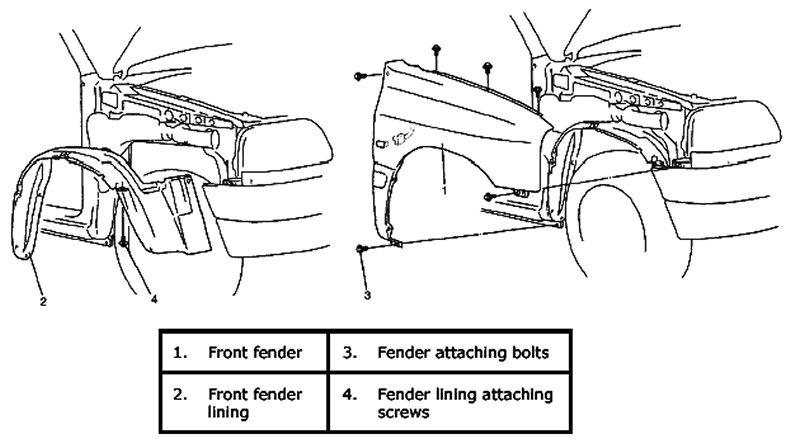

Front Fender Components:






Removal
1. Remove front bumper.
2. Disconnect connector of side turn signal (or side maker) lamp.
3. Remove front fender lining.
4. Remove front fender.

Installation

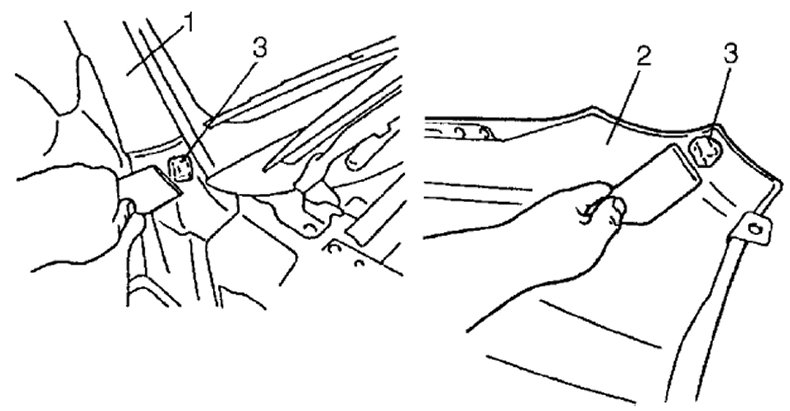

1. Remove pad (3) from side body (1) and/or fender (2), using care not to damage painted surface.

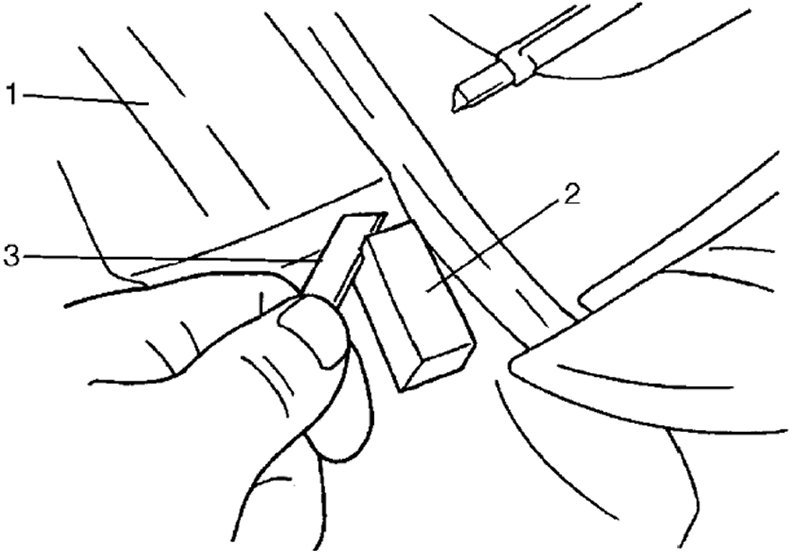

2. Attach new pad (2) cutting appropriately size temporarily and adjust height with a knife (3) so that fender becomes flush with side body (1).







3. Install front fender.

NOTE: If paint on fender bolt is peeled off, be sure to apply paint again.

4. Install front fender lining.
5. Connect connector of side turn signal (or side marker) lamp.
6. Install front bumper.
