Heated Mirror Switch: Testing and Inspection
Door Mirror Heater Switch Inspection 1.
Remove mirror heater switch from instrument panel.
2.

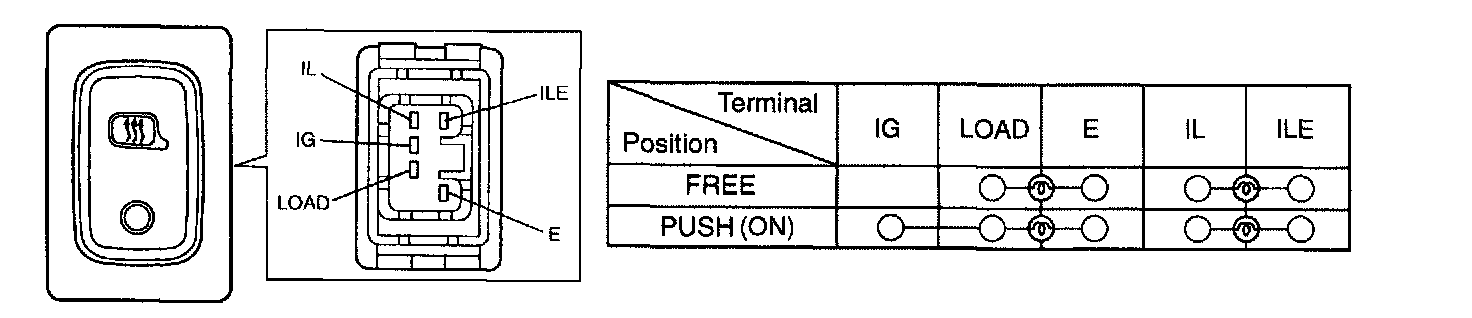

Check for continuity between terminals at each switch position as shown. If check result is not as specified, replace switch.
