Clutch Switch: Adjustments

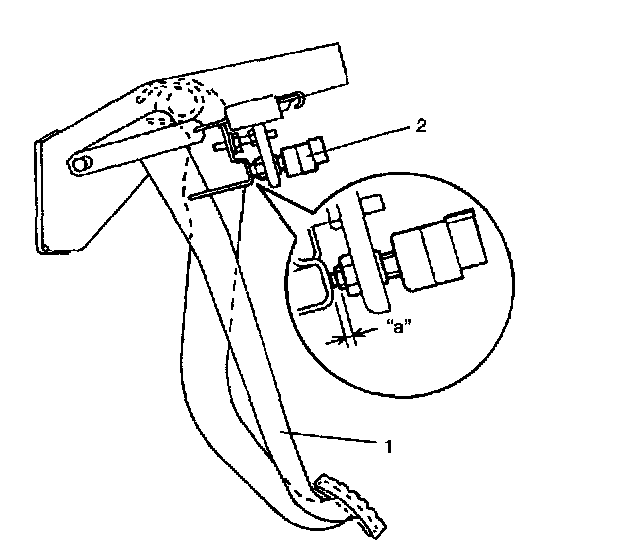

Clutch Pedal Position (CPP) Switch AdjustmentWith clutch pedal (1) released, adjust switch (2) position so that clearance between end of thread and clutch pedal bracket is within specification.
Clearance between end of thread and clutch pedal bracket "a":
1.5 - 2.0 mm (0.06-0.08 in.)
