Clutch Switch: Testing and Inspection

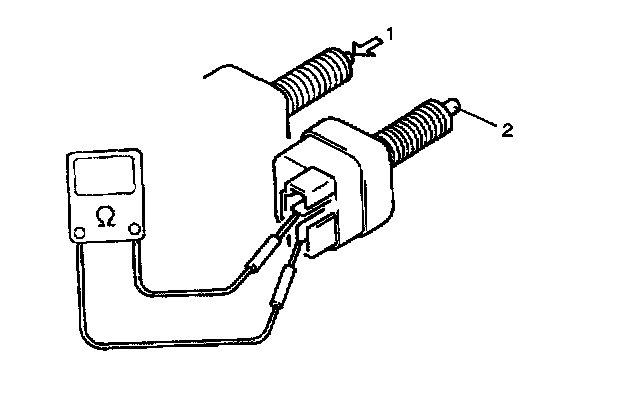

Clutch Pedal Position (CPP) Switch InspectionCheck for resistance between terminals under each condition below. If check result is not satisfactory, replace.
CPP switch (for cruise control) resistance
When switch shaft is pushed (1): No continuity
When switch shaft is free (2): Continuity
