Engine: Description and Operation

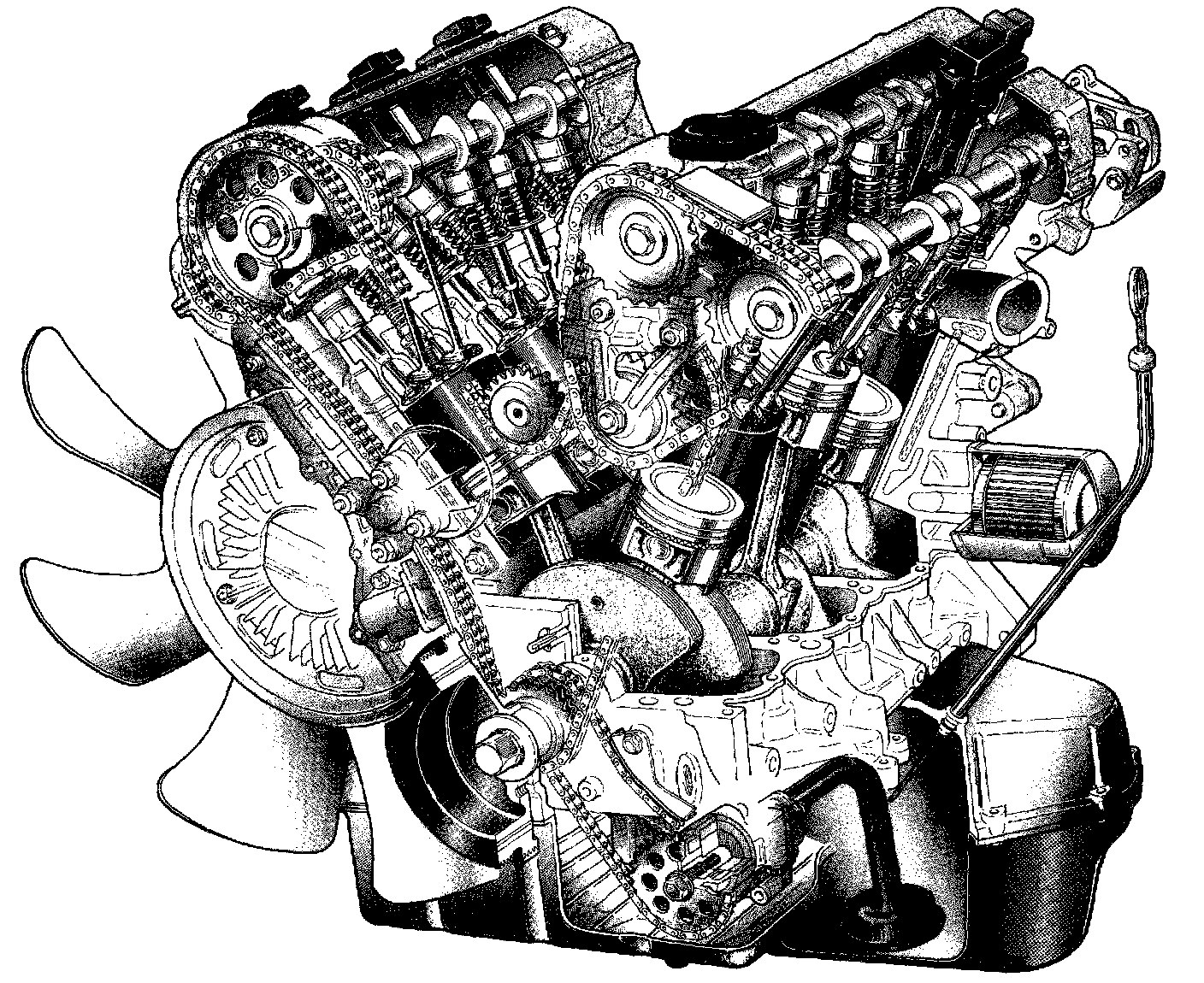

Engine General Information The engine is a water-cooled,
60° V6 cylinders, 4 stroke cycle gasoline unit with its Double overhead
camshaft (DOHC) valve mechanism arranged for "V" type valve configuration. The double overhead camshaft is mounted over the cylinder head; it is driven from
crankshaft through
timing chains, and no push rods are provided in the valve train system.
