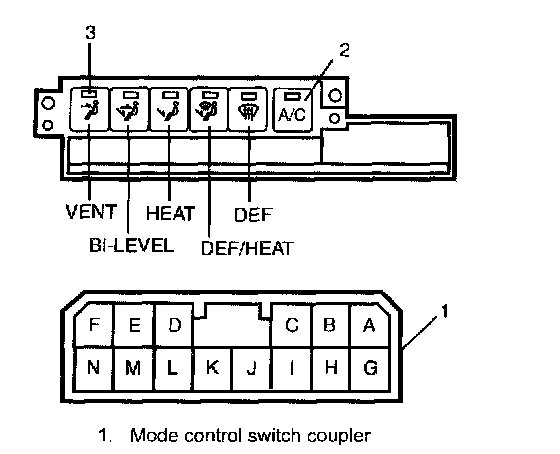

A/C Switch

- Press A/C button (2) and check if there is continuity between terminals "D" and "G".
- With battery voltage (+) connected to terminal "K" and (-) to terminal "D", press A/C button (2) and check if indicator lamp (3) lights.
