Blower Motor Switch: Testing and Inspection

Rear Blower Motor Switch

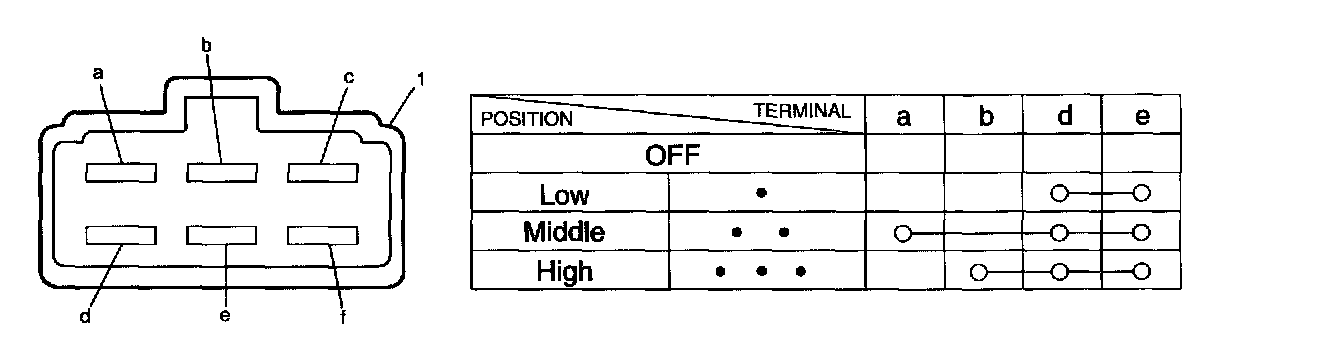

- Check rear blower motor switch for each terminal-to-terminal continuity.
If check results are not specified, replace rear blower motor switch.
- Check rear blower motor switch bulb come ON when connect battery positive (+) cable to terminal "c" and battery negative (-) cable to terminal "f" of switch connector (1).
If A/C blower motor switch bulb does not come ON, replace it.
