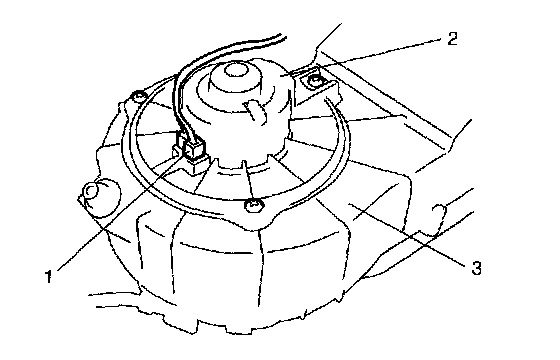

Rear Blower Motor Assembly
Removal 1.
Remove solenoid valve referring to "A/C Solenoid Valve Removal and Installation:".
2.
Disconnect rear blower motor coupler (1).
3.
Remove rear blower motor assembly (2) from rear A/C unit (3).
InstallationReverse removal procedure for installation.
