Compressor Clutch Relay: Testing and Inspection

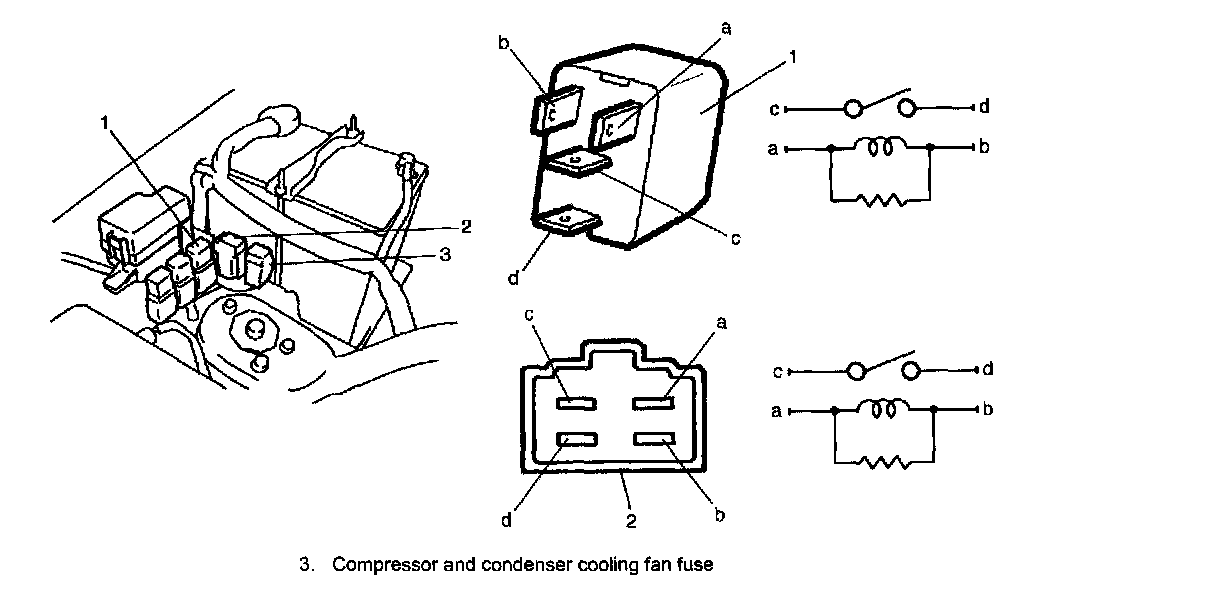

A/C Compressor Relay and Condenser Fan Motor Relay




1. Disconnect negative cable at battery.
2. Remove A/C condenser fan motor relay (2) and/or compressor relay (1) from vehicle.
3. Check that there is no continuity between terminal "c" and "d". If there is continuity, replace relay.
4. Connect battery positive (+) terminal to terminal "b" of relay.
Connect battery negative (-) terminal to terminal "a" of relay.
Check continuity between terminal "c" and "d".
If there is no continuity when relay is connected to the battery, replace relay.
