Magnet Clutch

Magnet Clutch Operating Check

Check the following items.
If any detects are found, repair or replace magnet clutch assembly.
- Check no sigh of compressor oil leakage.
- Check magnet clutch pulley bearing for noise and grease leakage.




- Check magnet clutch operation as follows:

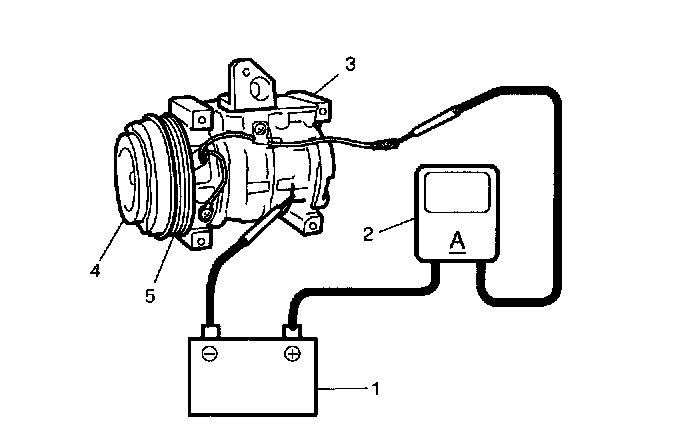

- Connect battery (1) and ammeter (2) to compressor (3) as shown.
- Check that steadily locks between armature plate (4) and magnet clutch pulley (5).
- Check that ammeter (2) indicates specified current.


Specified current of magnet clutch 4 A MAX at 12 V
