A/C Condenser Fan Motor Relay Control System Inspection

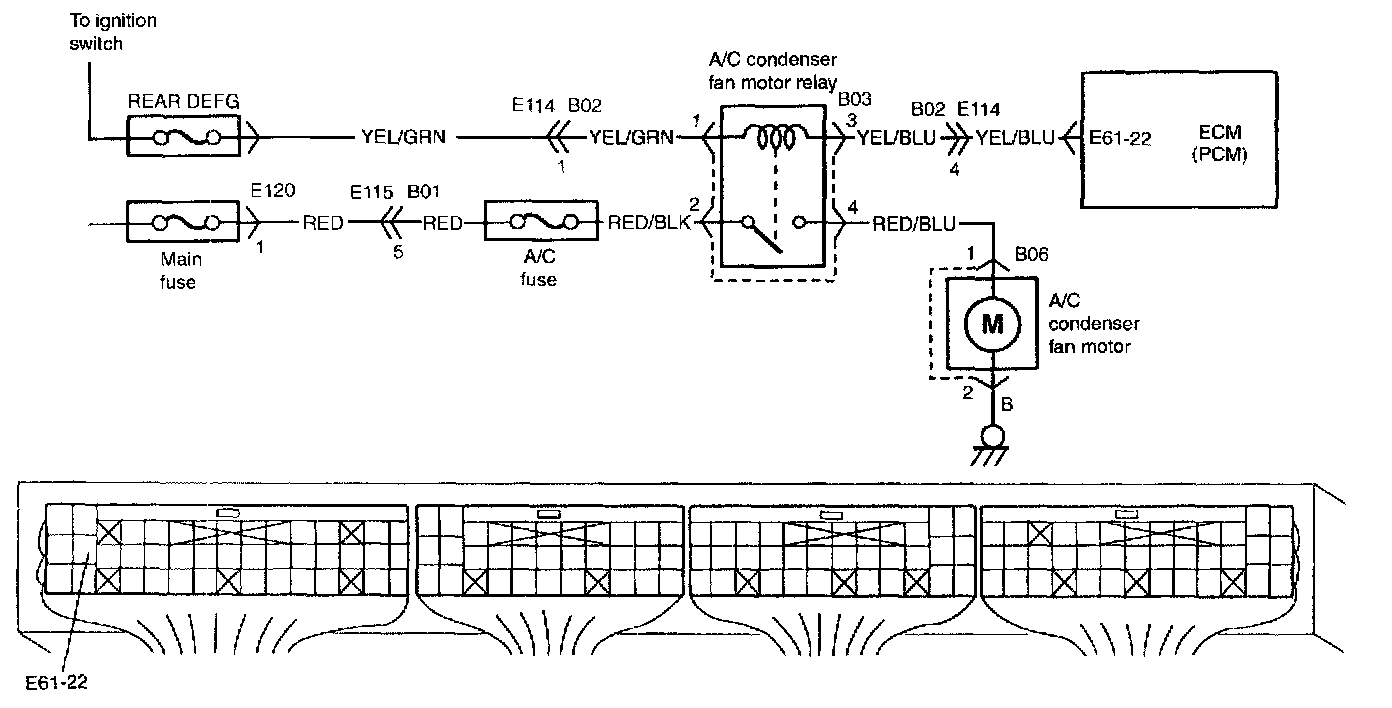

Wiring Diagram:

Wiring Diagram

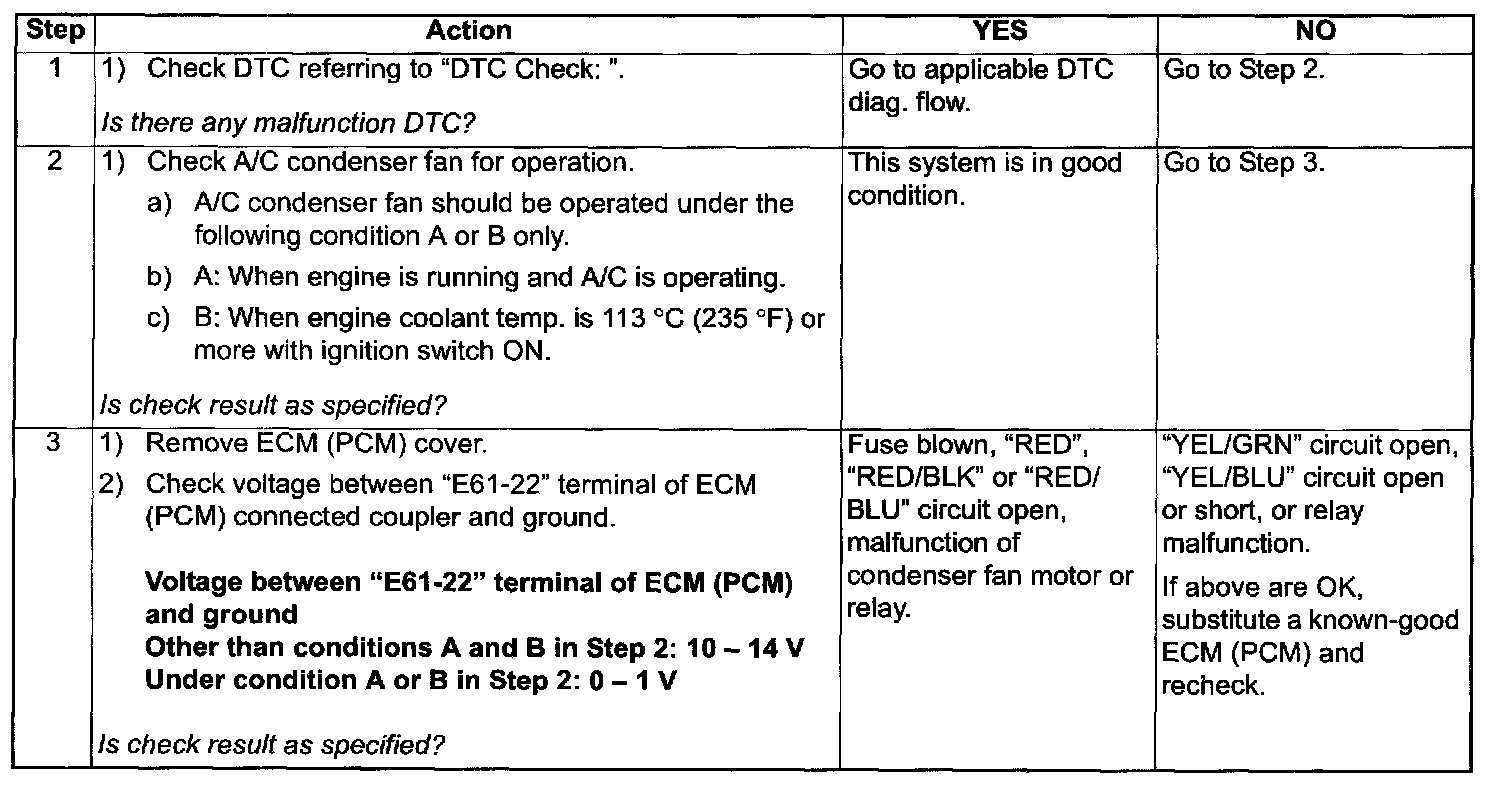

Step 1 - 3:

Troubleshooting

WARNING: Keep hands, tools, and clothing away from A/C condenser fan to help prevent personal injury. This fan is electric and can come on whether or not the engine is running. The fan can start automatically in response to the ECT sensor with the ignition switch in the "ON" position.
